KAC04LGGR

Active

E-Switch

SWITCH: DIP-SWITCH; POLES NUMBER: 4; OFF-ON; 0.1A/50VDC; POS: 2; SMT

Search across all available documentation for this part.

Active

E-Switch

SWITCH: DIP-SWITCH; POLES NUMBER: 4; OFF-ON; 0.1A/50VDC; POS: 2; SMT

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Voltage Rating	Circuit	Mounting Type	Termination Style	Actuator Type	Mechanical Life	Contact Finish	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Actuator Level	Height Above Board	Height Above Board	Length [x]	Length [x]
E-Switch KAC06LGGR	25 mA	24 VDC	SPST	Surface Mount Right Angle	Gull Wing	Piano	2000 Cycles	Gold	0.655 in	16.64 mm	85 °C	-20 C	6	2000 Steps	0.1 in	Full	2.54 mm	Raised	0.201 in	5.1 mm
E-Switch KAC06LGGT	25 mA	24 VDC	SPST	Surface Mount Right Angle	Gull Wing	Piano	2000 Cycles	Gold	0.655 in	16.64 mm	85 °C	-20 C	6	2000 Steps	0.1 in	Full	2.54 mm	Raised	0.201 in	5.1 mm
E-Switch KAC04LGGR	25 mA	24 VDC	SPST	Surface Mount Right Angle	Gull Wing	Piano	2000 Cycles	Gold			85 °C	-20 C	4	2000 Steps	0.1 in	Full	2.54 mm	Raised	0.201 in	5.1 mm	0.455 "	11.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1400	$ 1.99

General part information

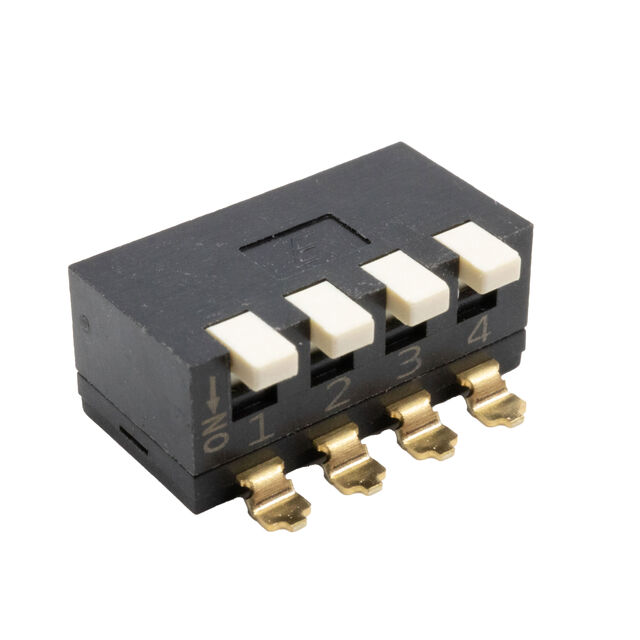

Dip Switch SPST 4 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC

Technical documentation and resources

No documents available
