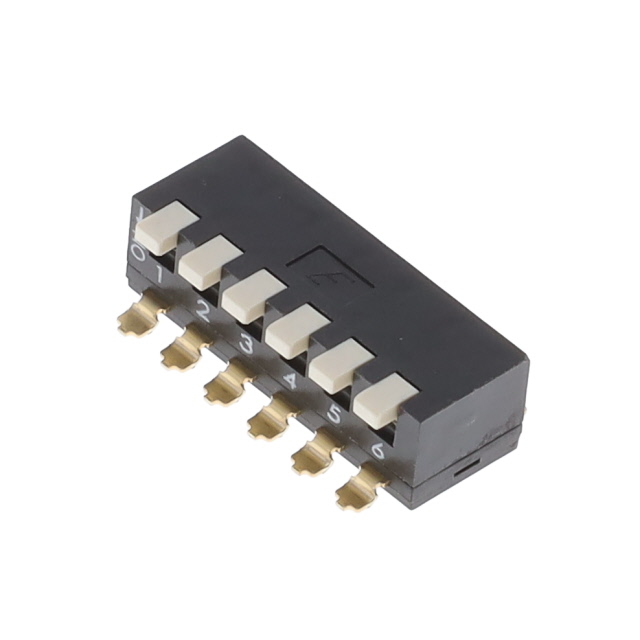

KAC06LGGR
ActiveE-Switch
SWITCH: DIP-SWITCH; POLES NUMBER: 6; OFF-ON; 0.1A/50VDC; POS: 2; SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KAC06LGGR |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Piano |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board | 0.201 in |
| Height Above Board | 5.1 mm |
| Length | 0.655 in |
| Length | 16.64 mm |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.65 | |
| 10 | $ 3.49 | |||
| 25 | $ 3.19 | |||
| 100 | $ 2.76 | |||
| 250 | $ 2.51 | |||
| Digi-Reel® | 1 | $ 3.65 | ||
| 10 | $ 3.49 | |||
| 25 | $ 3.19 | |||
| 100 | $ 2.76 | |||
| 250 | $ 2.51 | |||
| Tape & Reel (TR) | 700 | $ 1.88 | ||
Description
General part information
KAC04 Series
Dip Switch SPST 6 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
