A9CCA-2502E

Active

TE Connectivity Raychem Cable Protection

FLEX CABLE - AFK25A/AE25/AFK25A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FLEX CABLE - AFK25A/AE25/AFK25A

Technical Specifications

Parameters and characteristics for this part

Specification	A9CCA-2502E

Contact Termination	Receptacle with Latch to Receptacle with Latch
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

...

Part	Contact Termination	Number of Positions	Pitch [x]	Pitch [x]	Length	Length	Number of Positions	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection A9CCA-2006F	Receptacle with Latch to Receptacle with Latch	20	2.54 mm	0.1 in	152.4 mm	6 in
TE Connectivity Raychem Cable Protection A9CCA-1302F	Receptacle with Latch to Receptacle with Latch	13	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection A9CCA-2502E	Receptacle with Latch to Receptacle with Latch		1.27 mm	0.05 in
TE Connectivity Raychem Cable Protection A9CCA-1602F	Receptacle with Latch to Receptacle with Latch		2.54 mm	0.1 in			16
TE Connectivity Raychem Cable Protection A9CCA-0504F	Receptacle with Latch to Receptacle with Latch		2.54 mm	0.1 in				101.6 mm	4 "
TE Connectivity Raychem Cable Protection A9CCA-2506E	Receptacle with Latch to Receptacle with Latch		1.27 mm	0.05 in	152.4 mm	6 in
TE Connectivity Raychem Cable Protection A9CCA-1202F	Receptacle with Latch to Receptacle with Latch	12	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection A9CCA-1503F	Receptacle with Latch to Receptacle with Latch	15	2.54 mm	0.1 in	76.2 mm				3 in
TE Connectivity Raychem Cable Protection A9CCA-1605F	Receptacle with Latch to Receptacle with Latch		2.54 mm	0.1 in			16	127 mm	5 in
TE Connectivity Raychem Cable Protection A9CCA-1406F	Receptacle with Latch to Receptacle with Latch	14	2.54 mm	0.1 in	152.4 mm	6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

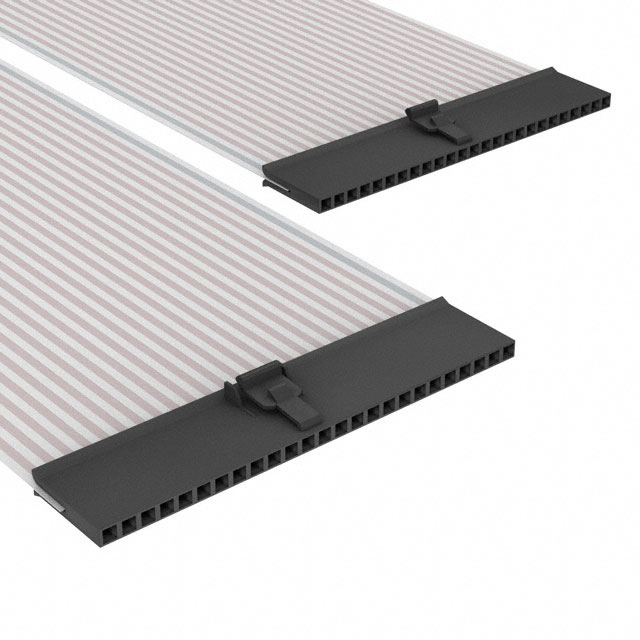

25 Position Flat Flex Cable Assembly Receptacle with Latch to Receptacle with Latch 2.00" (50.80mm)
