A9CCA-1503F
ActiveTE Connectivity Raychem Cable Protection
FLEX CABLE - AFG15A/AF15/AFG15A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A9CCA-1503F |
|---|---|
| Contact Termination | Receptacle with Latch to Receptacle with Latch |
| Length | 76.2 mm |
| Length [x] | 3 in |
| Number of Positions | 15 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.71 | |
| 10 | $ 5.56 | |||
| 25 | $ 5.16 | |||
| 50 | $ 4.88 | |||
| 100 | $ 4.61 | |||
| 250 | $ 4.28 | |||
| 500 | $ 4.05 | |||
| 1000 | $ 3.83 | |||
| 2500 | $ 3.59 | |||
Description
General part information
A9CCA Series

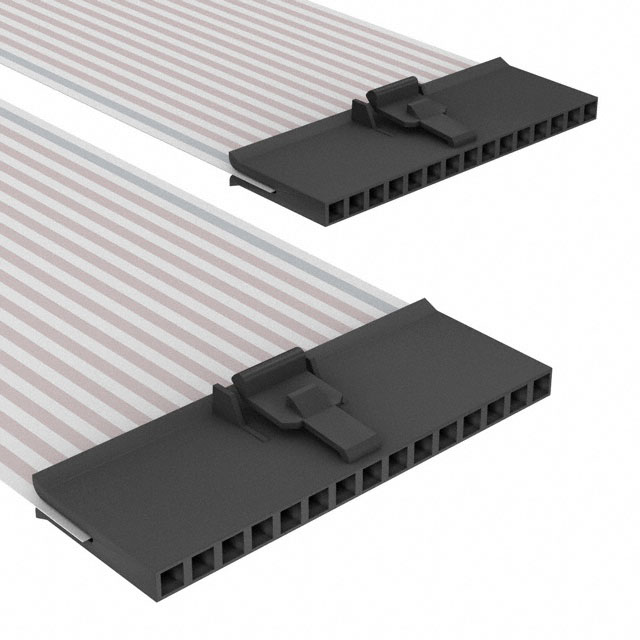

15 Position Flat Flex Cable Assembly Receptacle with Latch to Receptacle with Latch 3.00" (76.20mm)
