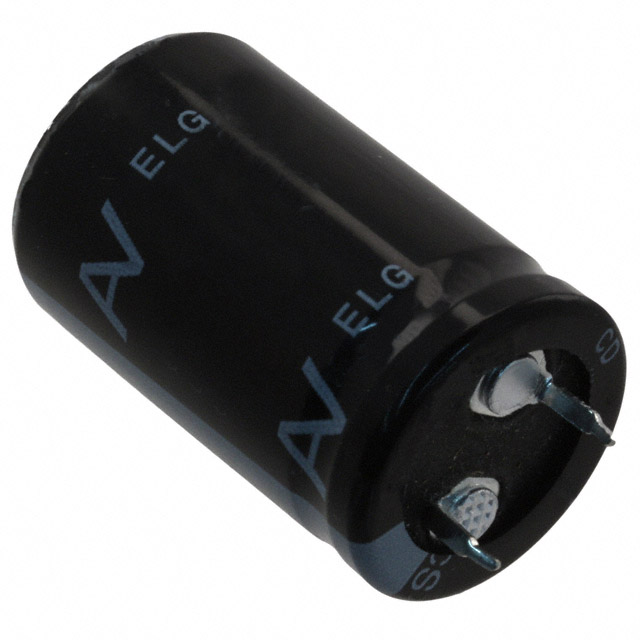

ELG107M400AQ3AA

Active

KEMET

CAP ALUM 100UF 20% 400V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 100UF 20% 400V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELG107M400AQ3AA

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	582 mOhm
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	942.5 mA
Ripple Current @ Low Frequency	650 mA
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Tolerance	20 %
Voltage - Rated	400 V

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Polarization	Capacitance	Applications	Tolerance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.
KEMET ELG107M400AQ3AA	Through Hole	37 mm	1.457 in	582 mOhm	Polar	100 µF	General Purpose	20 %	650 mA	942.5 mA	0.394 in	10 mm	Radial Can - Snap-In	22 mm	0.866 in	-25 °C	105 ░C	400 V	2000 Hrs
KEMET ELG107M450AR2AA	Through Hole			628 mOhm	Polar	100 µF	General Purpose	20 %	600 mA	870 mA	0.394 in	10 mm	Radial Can - Snap-In	25 mm	0.984 "	-25 °C	105 ░C	450 V	2000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 582mOhm @ 20kHz 2000 Hrs @ 105°C
