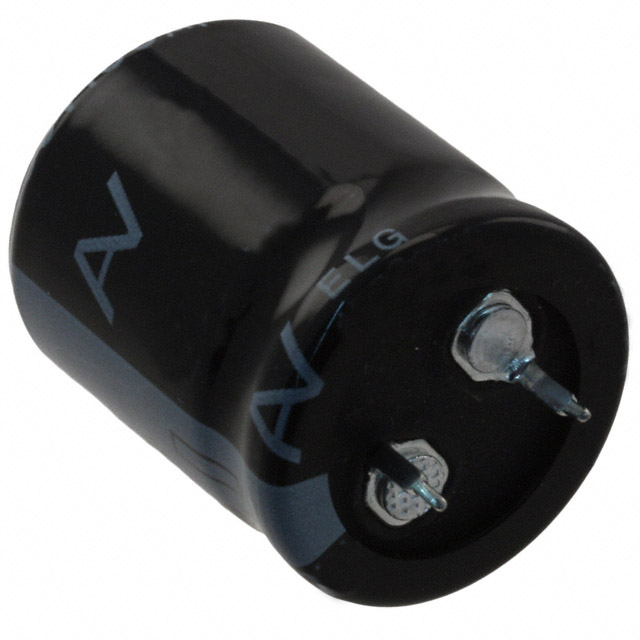

ELG107M450AR2AA

Active

KEMET

ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 100 F, 20%, 450 V, 25 MM, 0.628 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, SNAP-IN, ELG SERIES, 100 F, 20%, 450 V, 25 MM, 0.628 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ELG107M450AR2AA

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	628 mOhm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	870 mA
Ripple Current @ Low Frequency	600 mA
Size / Dimension [diameter]	25 mm
Size / Dimension [diameter]	0.984 "
Tolerance	20 %
Voltage - Rated	450 V

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Polarization	Capacitance	Applications	Tolerance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.
KEMET ELG107M400AQ3AA	Through Hole	37 mm	1.457 in	582 mOhm	Polar	100 µF	General Purpose	20 %	650 mA	942.5 mA	0.394 in	10 mm	Radial Can - Snap-In	22 mm	0.866 in	-25 °C	105 ░C	400 V	2000 Hrs
KEMET ELG107M450AR2AA	Through Hole			628 mOhm	Polar	100 µF	General Purpose	20 %	600 mA	870 mA	0.394 in	10 mm	Radial Can - Snap-In	25 mm	0.984 "	-25 °C	105 ░C	450 V	2000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 628mOhm @ 20kHz 2000 Hrs @ 105°C
