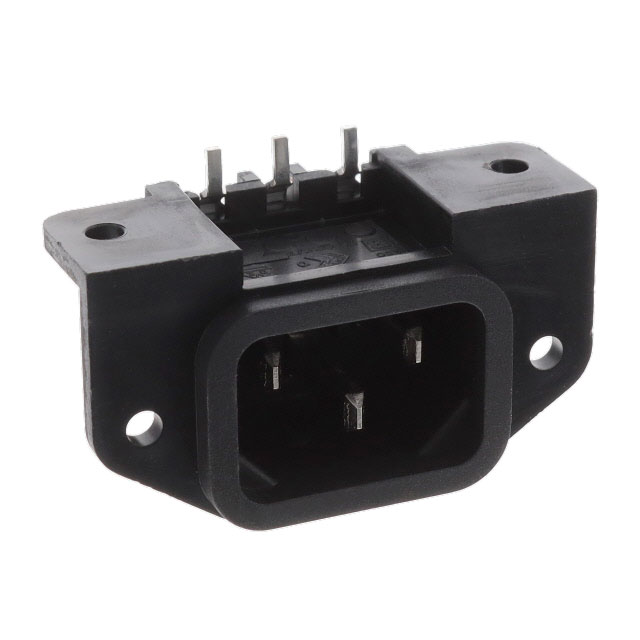

PX0580/PC/7/LC
ActiveBULGIN LIMITED
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0580/PC/7/LC
ActiveBULGIN LIMITED
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0580/PC/7/LC |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 30.25 mm |
| Panel Cutout Dimensions [y] | 22.48 mm |
| Panel Thickness [custom] | 0.126 in |
| Panel Thickness [custom] | 3.2 mm |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
PX0580 Series
| Part | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Panel Cutout Dimensions | Filter Type | Current Rating - Appliance Inlet | Connector Style | Connector Type | Approval Agency | Termination | Features | Mounting Type | Material Flammability Rating | Termination | Termination | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [custom] | Panel Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 250 VAC | Variable Size | Unfiltered - Commercial | 10 A | IEC 320-C14 | Male Blades Receptacle | CSA ENEC UL VDE | Screw | Front or Rear Side Mount | Flange Panel Mount | UL94 V-0 | |||||||
BULGIN LIMITED | 250 VAC | Variable Size | Unfiltered - Commercial | 10 A | IEC 320-C14 | Male Blades Receptacle | CSA ENEC UL VDE | Quick Connect | Front or Rear Side Mount | Flange Panel Mount | UL94 V-0 | 0.189 " 4.8 mm | ||||||
BULGIN LIMITED | 250 VAC | Variable Size | Unfiltered - Commercial | 10 A | IEC 320-C14 | Male Blades Receptacle | CSA ENEC UL VDE | Quick Connect | Front or Rear Side Mount | Flange Panel Mount | UL94 V-0 | 6.3 mm | 0.25 in | |||||
BULGIN LIMITED | 250 VAC | Unfiltered - Commercial | 10 A | IEC 320-C14 | Male Blades Receptacle | CSA ENEC UL VDE | Solder | Panel Mount Flange Through Hole Right Angle | UL94 V-0 | 30.25 mm | 22.48 mm | 0.126 in | 3.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PX0580 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
