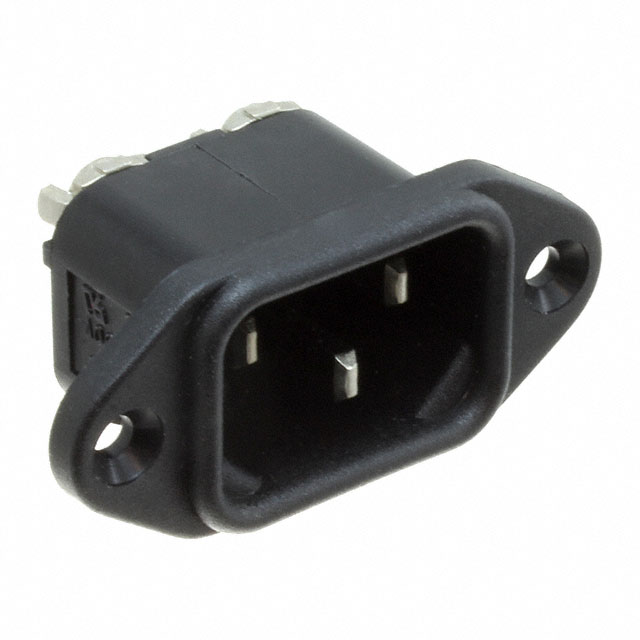

Specification	PX0580/TERM

Accomodates a Fuse	No
Approval Agency	UL, VDE, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Front or Rear Side Mount
Filter Type	Unfiltered, Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Description	Variable Size
Termination	Screw
Voltage Rating - Appliance Inlet	250 VAC

PX0580 Series

Part	Approval Agency	Mounting Type	Connector Style	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Features	Termination	Material Flammability Rating	Panel Thickness	Number of Positions	Accomodates a Fuse	Connector Type	Filter Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Panel Cutout Description	Termination Probe Tip OD
BULGIN LIMITED PX0580/PC/12132	CSA ENEC UL VDE	Flange Panel Mount Right Angle Through Hole	IEC 320-C14	Rectangular	22.48 mm	30.25 mm	Terminating Cover	Solder	UL94 V-0	0.126 in	3	No	Male Blades Receptacle	Commercial Unfiltered	10 A	250 VAC
BULGIN LIMITED PX0580/TERM	CSA ENEC UL VDE	Flange Panel Mount	IEC 320-C14				Front or Rear Side Mount	Screw	UL94 V-0		3	No	Male Blades Receptacle	Commercial Unfiltered	10 A	250 VAC	Variable Size
BULGIN LIMITED PX0580/48	CSA ENEC UL VDE	Flange Panel Mount	IEC 320-C14				Front or Rear Side Mount	Quick Connect	UL94 V-0		3	No	Male Blades Receptacle	Commercial Unfiltered	10 A	250 VAC	Variable Size	0.189 in
BULGIN LIMITED PX0580/63	CSA ENEC UL VDE	Flange Panel Mount	IEC 320-C14				Front or Rear Side Mount	Quick Connect	UL94 V-0		3	No	Male Blades Receptacle	Commercial Unfiltered	10 A	250 VAC	Variable Size	0.25 in
BULGIN LIMITED PX0580/PC/7/LC	CSA ENEC UL VDE	Flange Panel Mount Right Angle Through Hole	IEC 320-C14	Rectangular	22.48 mm	30.25 mm		Solder	UL94 V-0	0.126 in	3	No	Male Blades Receptacle	Commercial Unfiltered	10 A	250 VAC
