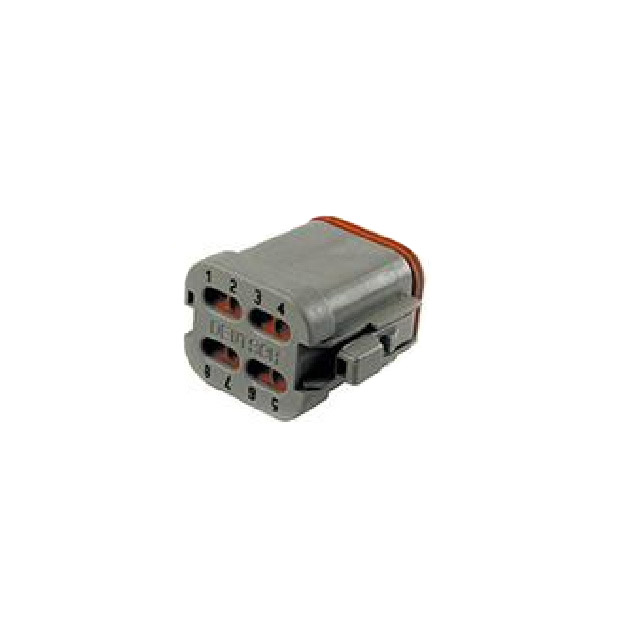

DT06-08SA-E003

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 8POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsICT Terminals,Connector Catalog Datasheet

DT06-08SA-E003

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 8POS

Deep-Dive with AI

DocumentsICT Terminals,Connector Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DT06-08SA-E003

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP68, Cap (Cover), IP6K9K
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

DEUTSCH DT Series

...

Part	Features	Insulation Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Termination	Contact Type	Number of Rows	Color	Note	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Style	Contact Shape	Ingress Protection	Applications	Termination	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color	For Use With/Related Products	Accessory Type
TE Connectivity Raychem Cable Protection DT04-3P-LE08	IP68 IP6K9K	Plastic	Receptacle	-55 °C	125 °C	Latch Holder	Crimp	Male Pin	2	Gray	Contacts Not Included
TE Connectivity Raychem Cable Protection DT13-12PD	Mounting Flange	Glass Filled Nylon 4/6 Polyamide (PA46)	Header	-55 °C	125 °C	Latch Holder		Male Pin	2			All	0.25 in	6.35 mm	12	Nickel	0.175 in	4.44 mm	Copper Alloy	Tin	35.26 mm	1.388 in	Shrouded - 4 Wall	Board to Cable/Wire	Circular	IP68 IP6K9K	Automotive	Solder	Panel Mount Right Angle Through Hole	0.122 "	3.1 mm	Brown
TE Connectivity Raychem Cable Protection DTP4P-BT	Cap (Cover)														4																		DTP Series	Boot
TE Connectivity Raychem Cable Protection DT06-2S-P012	Enhanced Seal IP68 IP6K9K	Glass Filled Nylon Polyamide (PA)	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	1	Black	Contacts Not Included				2														Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection W4SB	Locking														4																		DT Series	Secondary Lock
TE Connectivity Raychem Cable Protection DT06-08SA-E003	Cap (Cover) IP68 IP6K9K	Glass Filled Nylon Polyamide (PA)	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	2	Gray	Contacts Not Included				8														Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DT06-08SC-CE05	Blocked Gasket Cap (Cover) IP68 IP6K9K Reduced Wire Seals	Plastic	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	2	Green	Contacts Not Included				8														Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DT04-3P-TN32	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	Polyamide (PA66) Nylon 6/6 Glass Filled	Receptacle	-55 °C	125 °C	Latch Holder	Crimp	Male Pin	2	Black	Contacts Not Included																		Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection W2S															2																		DT Series Plugs
TE Connectivity Raychem Cable Protection DT06-4S-C017	Blocked Gasket IP68 IP6K9K	Plastic	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	2	Gray	Contacts Not Included				4														Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.23
		10	$ 4.75
		25	$ 4.50
		50	$ 4.40
		100	$ 4.19
		250	$ 3.66
		500	$ 3.56
		1000	$ 3.04
		2500	$ 2.83

Description

General part information

DEUTSCH DT Series

8 Rectangular Connectors - Housings Plug Gray

Documents

Technical documentation and resources

ICT Terminals,Connector Catalog

Datasheet
