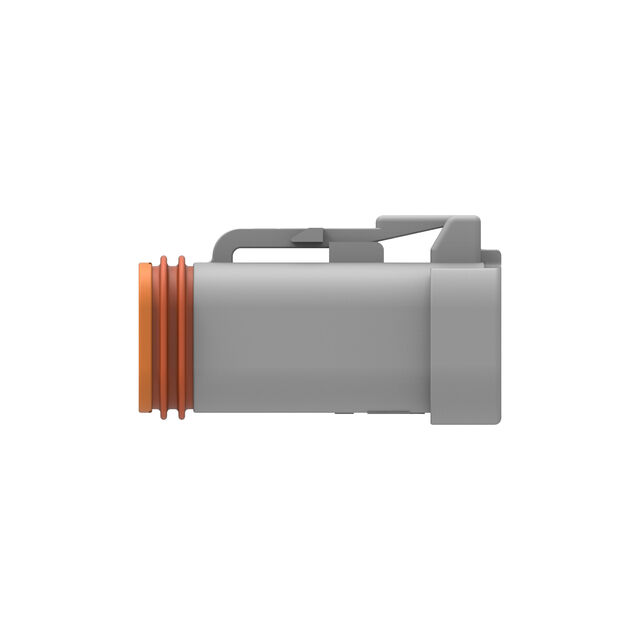

DT06-4S-C017

Active

TE Connectivity Raychem Cable Protection

COMBINATION LINE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsICT Terminals,Connector Catalog Datasheet

DT06-4S-C017

Active

TE Connectivity Raychem Cable Protection

COMBINATION LINE CONNECTOR

Deep-Dive with AI

DocumentsICT Terminals,Connector Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DT06-4S-C017

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Blocked Gasket, IP6K9K, IP68
Insulation Material	Plastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

DEUTSCH DT Series

...

Part	Features	Insulation Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Termination	Contact Type	Number of Rows	Color	Note	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Style	Contact Shape	Ingress Protection	Applications	Termination	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color	For Use With/Related Products	Accessory Type
TE Connectivity Raychem Cable Protection DT04-3P-LE08	IP68 IP6K9K	Plastic	Receptacle	-55 °C	125 °C	Latch Holder	Crimp	Male Pin	2	Gray	Contacts Not Included
TE Connectivity Raychem Cable Protection DT13-12PD	Mounting Flange	Glass Filled Nylon 4/6 Polyamide (PA46)	Header	-55 °C	125 °C	Latch Holder		Male Pin	2			All	0.25 in	6.35 mm	12	Nickel	0.175 in	4.44 mm	Copper Alloy	Tin	35.26 mm	1.388 in	Shrouded - 4 Wall	Board to Cable/Wire	Circular	IP68 IP6K9K	Automotive	Solder	Panel Mount Right Angle Through Hole	0.122 "	3.1 mm	Brown
TE Connectivity Raychem Cable Protection DTP4P-BT	Cap (Cover)														4																		DTP Series	Boot
TE Connectivity Raychem Cable Protection DT06-2S-P012	Enhanced Seal IP68 IP6K9K	Glass Filled Nylon Polyamide (PA)	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	1	Black	Contacts Not Included				2														Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection W4SB	Locking														4																		DT Series	Secondary Lock
TE Connectivity Raychem Cable Protection DT06-08SA-E003	Cap (Cover) IP68 IP6K9K	Glass Filled Nylon Polyamide (PA)	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	2	Gray	Contacts Not Included				8														Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DT06-08SC-CE05	Blocked Gasket Cap (Cover) IP68 IP6K9K Reduced Wire Seals	Plastic	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	2	Green	Contacts Not Included				8														Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DT04-3P-TN32	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	Polyamide (PA66) Nylon 6/6 Glass Filled	Receptacle	-55 °C	125 °C	Latch Holder	Crimp	Male Pin	2	Black	Contacts Not Included																		Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection W2S															2																		DT Series Plugs
TE Connectivity Raychem Cable Protection DT06-4S-C017	Blocked Gasket IP68 IP6K9K	Plastic	Plug	-55 °C	125 °C	Latch Lock	Crimp	Female Socket	2	Gray	Contacts Not Included				4														Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.81
		10	$ 3.46
		25	$ 3.27
		50	$ 3.20
		100	$ 3.04
		250	$ 2.66
		500	$ 2.59
		1000	$ 2.21
		2500	$ 2.05

Description

General part information

DEUTSCH DT Series

4 Rectangular Connectors - Housings Plug Gray

Documents

Technical documentation and resources

ICT Terminals,Connector Catalog

Datasheet
