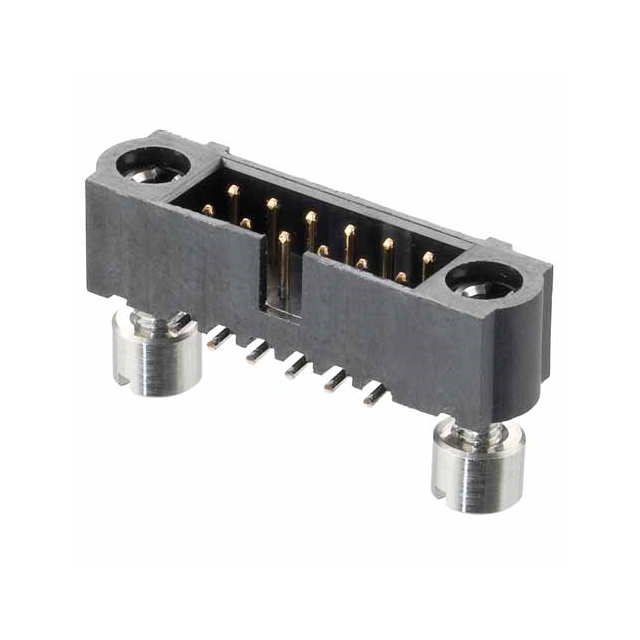

M80-5S10442ME

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, M2X0.4, BLACK INSULATOR, RECEPTACLE,

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, M2X0.4, BLACK INSULATOR, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5S10442ME

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	5.95 mm
Insulation Height	0.234 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.55 mm, 8.05 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

Part	Contact Finish - Post	Features	Mated Stacking Heights	Connector Type	Voltage Rating	Number of Rows	Termination	Contact Material	Contact Type	Mounting Type	Style	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Shrouding
Harwin Inc. M80-5S13442MC	Tin	Keying Slot Mating Flange	7.55 mm 8.05 mm	Header	800 VAC	2	Solder	Phosphor Bronze	Male Pin	Surface Mount	Board to Board Cable	All	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	34	Gold	UL94 V-0	-55 °C	125 °C	5.6 mm	0.22 in	Circular	29.5 Áin	0.75 Ám	2.2 A	0.3 µm	12 µin	Black	Shrouded - 4 Wall
Harwin Inc. M80-5S10442ME	Tin	Keying Slot Mating Flange Mounting Flange Mounting Hardware	7.55 mm 8.05 mm	Header	800 VAC	2	Solder	Phosphor Bronze	Male Pin	Surface Mount	Board to Board Cable	All	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	4	Gold	UL94 V-0	-55 °C	121 °C	5.95 mm	0.234 in	Circular	29.5 Áin	0.75 Ám	2.2 A	0.3 µm	12 µin	Black	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 11.02
Newark	Each	1000	$ 11.42
		2500	$ 11.17

General part information

Connector Header Surface Mount 4 position 0.079" (2.00mm)
