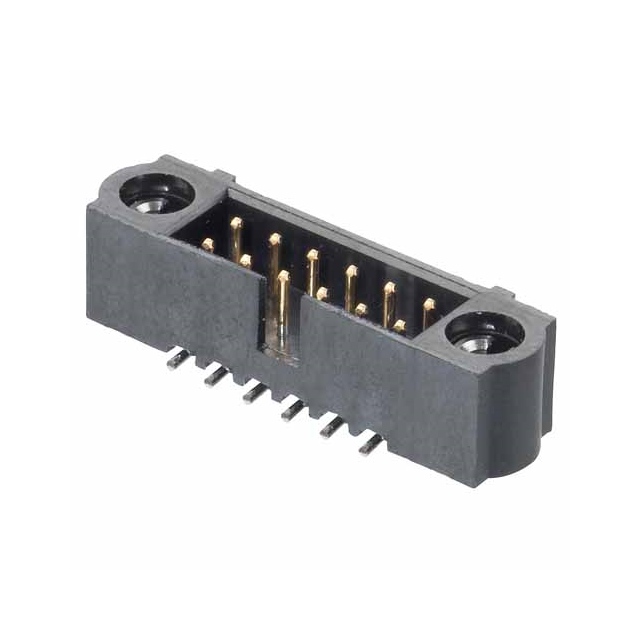

M80-5S13442MC
ActiveHarwin Inc.
17+17 POS. MALE DIL VERTICAL SMT CONN. 101LOK ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-5S13442MC
ActiveHarwin Inc.
17+17 POS. MALE DIL VERTICAL SMT CONN. 101LOK ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5S13442MC |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 0.3 µm |
| Contact Finish Thickness - Post | 12 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Keying Slot, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.55 mm, 8.05 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 VAC |
M80-5S1 Series
| Part | Contact Finish - Post | Features | Mated Stacking Heights | Connector Type | Voltage Rating | Number of Rows | Termination | Contact Material | Contact Type | Mounting Type | Style | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Tin | Keying Slot Mating Flange | 7.55 mm 8.05 mm | Header | 800 VAC | 2 | Solder | Phosphor Bronze | Male Pin | Surface Mount | Board to Board Cable | All | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.079 in | 2 mm | 34 | Gold | UL94 V-0 | -55 °C | 125 °C | 5.6 mm | 0.22 in | Circular | 29.5 Áin | 0.75 Ám | 2.2 A | 0.3 µm | 12 µin | Black | Shrouded - 4 Wall |
Harwin Inc. | Tin | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 7.55 mm 8.05 mm | Header | 800 VAC | 2 | Solder | Phosphor Bronze | Male Pin | Surface Mount | Board to Board Cable | All | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | 0.079 in | 2 mm | 4 | Gold | UL94 V-0 | -55 °C | 121 °C | 5.95 mm | 0.234 in | Circular | 29.5 Áin | 0.75 Ám | 2.2 A | 0.3 µm | 12 µin | Black | Shrouded - 4 Wall |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-5S1 Series
Connector Header Surface Mount 34 position 0.079" (2.00mm)
