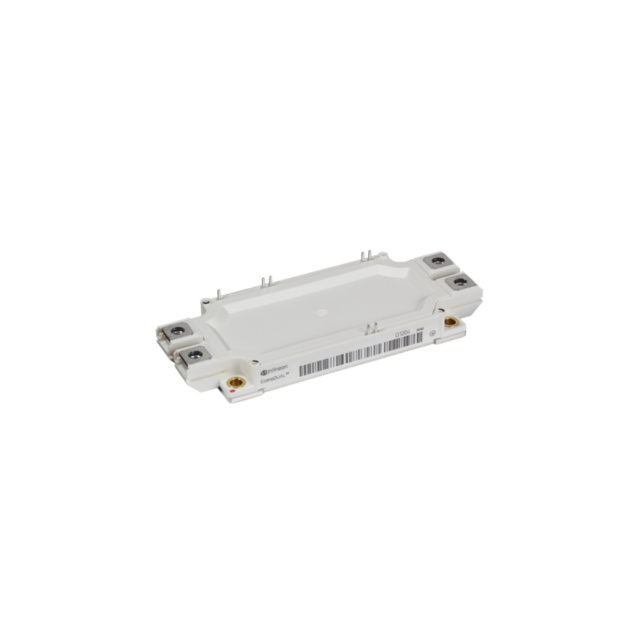

F3L400R07ME4B22BOSA1

Unknown

Infineon Technologies

IGBT MOD 650V 450A 1150W

Search across all available documentation for this part.

Unknown

Infineon Technologies

IGBT MOD 650V 450A 1150W

Technical Specifications

Parameters and characteristics for this part

Specification	F3L400R07ME4B22BOSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	450 A
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	26 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	1150 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	1.95 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Mounting Type	Configuration	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Input	Supplier Device Package	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case	Voltage - Collector Emitter Breakdown (Max)	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies F3L400R12PT4PB26BOSA1	Chassis Mount	Full Bridge	800 A	20 mW	1 mA	Standard	Module	25 nF	1200 V	2.15 V	Module
Infineon Technologies F3L400R07ME4B22BOSA1	Chassis Mount	2 Independent	450 A	1150 W		Standard	Module	26 nF		1.95 V	Module	650 V	Trench Field Stop
Infineon Technologies F3L400R10W3S7B11BPSA1	Chassis Mount				70 µA		Module		950 V	1.4 V	Module		Trench	150 °C	-40 °C
Infineon Technologies F3L400R12PT4B26BOSA1	Chassis Mount	Three Phase Inverter	600 A	2150 W	1 mA	Standard	Module	25 nF	1200 V	2.15 V	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Trench Field Stop 2 Independent 650 V 450 A 1150 W Chassis Mount Module
