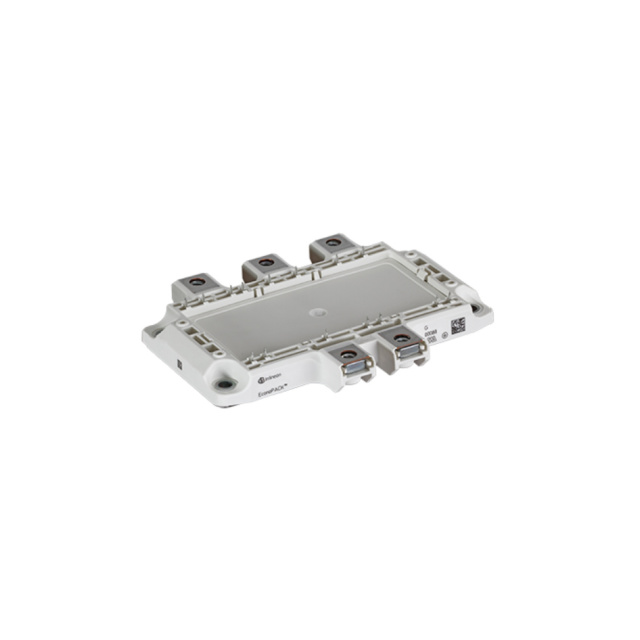

F3L400R12PT4B26BOSA1

Active

Infineon Technologies

THE F3L400R12PT4_B26 IS A 3-LEVEL IGBT4 - T4 MODULE IN A ECONOPACK™ 4 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 400 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

F3L400R12PT4B26BOSA1

Active

Infineon Technologies

THE F3L400R12PT4_B26 IS A 3-LEVEL IGBT4 - T4 MODULE IN A ECONOPACK™ 4 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 400 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F3L400R12PT4B26BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	600 A
Current - Collector Cutoff (Max) [Max]	1 mA
Input	Standard
Input Capacitance (Cies) @ Vce	25 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	2150 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

F3L400 Series

Part	Mounting Type	Configuration	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Input	Supplier Device Package	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case	Voltage - Collector Emitter Breakdown (Max)	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies F3L400R12PT4PB26BOSA1	Chassis Mount	Full Bridge	800 A	20 mW	1 mA	Standard	Module	25 nF	1200 V	2.15 V	Module
Infineon Technologies F3L400R07ME4B22BOSA1	Chassis Mount	2 Independent	450 A	1150 W		Standard	Module	26 nF		1.95 V	Module	650 V	Trench Field Stop
Infineon Technologies F3L400R10W3S7B11BPSA1	Chassis Mount				70 µA		Module		950 V	1.4 V	Module		Trench	150 °C	-40 °C
Infineon Technologies F3L400R12PT4B26BOSA1	Chassis Mount	Three Phase Inverter	600 A	2150 W	1 mA	Standard	Module	25 nF	1200 V	2.15 V	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 277.36
		12	$ 259.78
		30	$ 250.01

Description

General part information

F3L400 Series

EconoPACK™ 41200 V, 400 A 3-level phase legIGBT modulewith fast TRENCHSTOP™ IGBT4, "Neutral Point Clamp 2" topology and PressFIT Contact Technology. Also available withThermal Interface Material.
