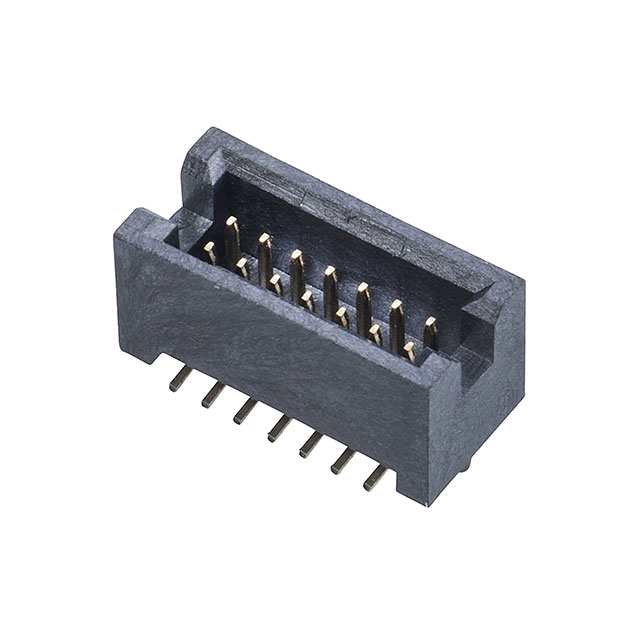

M50-4910745
ActiveHarwin Inc.
7+7 POS. MALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M50-4910745
ActiveHarwin Inc.
7+7 POS. MALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-4910745 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 5.69 mm |
| Insulation Height | 0.224 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
M50-491 Series
| Part | Termination | Insulation Color | Mounting Type | Mated Stacking Heights | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Material | Shrouding | Insulation Height | Insulation Height | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Finish Thickness - Mating | Number of Positions Loaded | Number of Positions | Material Flammability Rating | Contact Material | Features | Contact Type | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 24 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 30 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | 16 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 40 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 12 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 20 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 10 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 | |
Harwin Inc. | Solder | Black | Surface Mount | 6.5 mm | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Header | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 5.69 mm | 0.224 in | Push-Pull | -40 °C | 105 ░C | Square | Flash | All | 14 | UL94 V-0 | Phosphor Bronze | Board Guide | Male Pin | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-491 Series
Connector Header Surface Mount 14 position 0.050" (1.27mm)
