M50-4911545

Active

Harwin Inc.

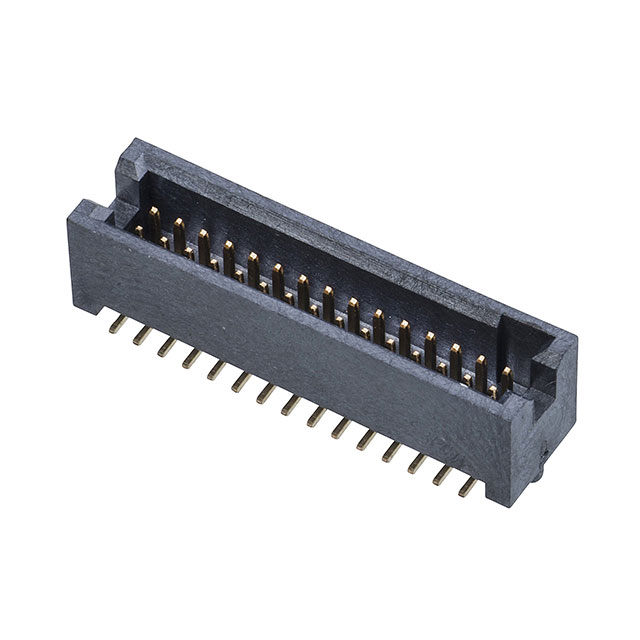

BOARD CONNECTOR, 30 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3000345 Datasheet +2

M50-4911545

Active

Harwin Inc.

BOARD CONNECTOR, 30 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

DocumentsM50-3000345 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-4911545

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

M50-491 Series

Part	Termination	Insulation Color	Mounting Type	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Shrouding	Insulation Height	Insulation Height	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Contact Material	Features	Contact Type	Number of Rows	Number of Positions
Harwin Inc. M50-4911245	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	24	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
Harwin Inc. M50-4911545	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	30	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
Harwin Inc. M50-4910845	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All		UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2	16
Harwin Inc. M50-4912045	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	40	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
Harwin Inc. M50-4910645	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	12	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
Harwin Inc. M50-4911045R	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	20	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
Harwin Inc. M50-4910545	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	10	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
Harwin Inc. M50-4910745	Solder	Black	Surface Mount	6.5 mm	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Header	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	5.69 mm	0.224 in	Push-Pull	-40 °C	105 ░C	Square	Flash	All	14	UL94 V-0	Phosphor Bronze	Board Guide	Male Pin	2
