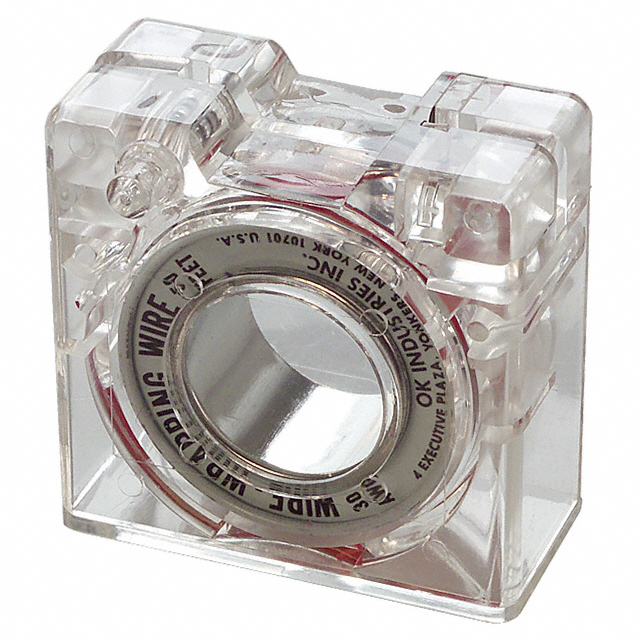

WD-30-R

Obsolete

Jonard Tools

WIRE WW 30AWG PVDF RED

Search across all available documentation for this part.

Obsolete

Jonard Tools

WIRE WW 30AWG PVDF RED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WD-30-R	WD-30 Series

Conductor Diameter [diameter]	0.25 mm	0.25 mm
Conductor Diameter [diameter]	0.01 in	0.01 in
Conductor Material	Copper, Bare	Copper, Bare
Conductor Plating	Silver	Silver
Features	With Dispenser	With Dispenser
Jacket (Insulation) Diameter [diameter]	0.019 in	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Jacket Color	Red	Red, Yellow, Blue, Multiple
Length [x]	50 ft	50 ft
Length [x]	15.24 m	15.24 m
Ratings	VW-1, UL Style 1423	VW-1, UL Style 1423
Wire Gauge	30 AWG	30 AWG

WIRE WW 30AWG PVDF RED

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Plating	Ratings	Features	Wire Gauge	Jacket Color	Length [x]	Length [x]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Conductor Material
Jonard Tools WD-30-R	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Red	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-W	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG		50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-Y	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Yellow	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-B	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Blue	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-TRI	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Multiple	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 30 AWG Red Polyvinylidene Fluoride (PVDF) 50' (15.24m) With Dispenser
