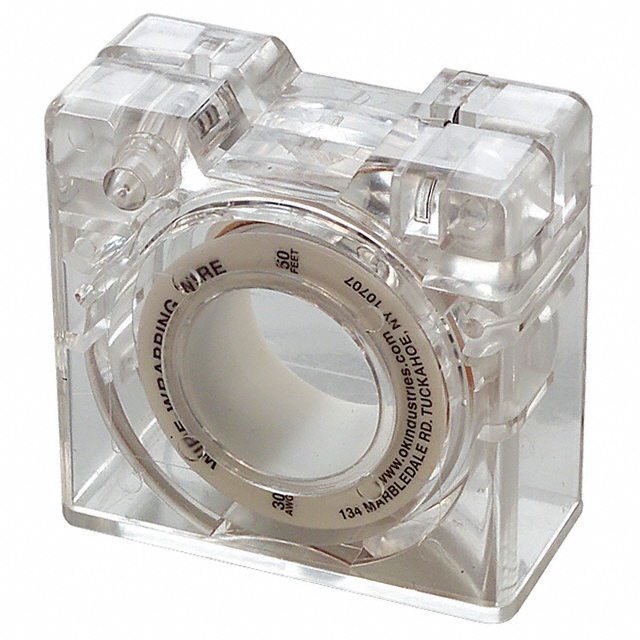

WD-30-W

Obsolete

Jonard Tools

CABLE ACCESSORIES WIRE DISPENSER COPPER WHITE SILVER KYNAR®

Search across all available documentation for this part.

Obsolete

Jonard Tools

CABLE ACCESSORIES WIRE DISPENSER COPPER WHITE SILVER KYNAR®

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WD-30-W	WD-30 Series

Conductor Diameter [diameter]	0.25 mm	0.25 mm
Conductor Diameter [diameter]	0.01 in	0.01 in
Conductor Material	Copper, Bare	Copper, Bare
Conductor Plating	Silver	Silver
Features	With Dispenser	With Dispenser
Jacket (Insulation) Diameter [diameter]	0.019 in	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Jacket Color	-	Red, Yellow, Blue, Multiple
Length [x]	50 ft	50 ft
Length [x]	15.24 m	15.24 m
Ratings	VW-1, UL Style 1423	VW-1, UL Style 1423
Wire Gauge	30 AWG	30 AWG

WIRE WW 30AWG PVDF RED

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Plating	Ratings	Features	Wire Gauge	Jacket Color	Length [x]	Length [x]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Conductor Material
Jonard Tools WD-30-R	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Red	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-W	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG		50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-Y	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Yellow	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-B	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Blue	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare
Jonard Tools WD-30-TRI	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	Silver	UL Style 1423, VW-1	With Dispenser	30 AWG	Multiple	50 ft	15.24 m	0.25 mm	0.01 in	Copper, Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 30 AWG White Polyvinylidene Fluoride (PVDF) 50' (15.24m) With Dispenser
