TPD11FGRA0

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Type	Actuator Type	Mounting Type	Circuit	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Actuator Marking	Color - Actuator/Cap	Switch Function	Termination Style	Voltage Rating - AC
TE Connectivity Raychem Cable Protection TPD11CGRA2	0.4 VA	Standard	Round Plunger	Through Hole Right Angle	SPST-NO	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Red	Off-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11FGPC0	0.4 VA	Standard	Round Plunger	Through Hole	SPDT	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Black	On-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11CGPCES0	0.4 VA	Standard	Round Plunger	Through Hole	SPST-NO	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Black	Off-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11FGRA2	0.4 VA	Standard	Round Plunger	Through Hole Right Angle	SPDT	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Red	On-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11FGRA0	0.4 VA	Standard	Round Plunger	Through Hole Right Angle	SPDT	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Black	On-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11CGPC2	0.4 VA	Standard	Round Plunger	Through Hole	SPST-NO	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Red	Off-Mom	PC Pin	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

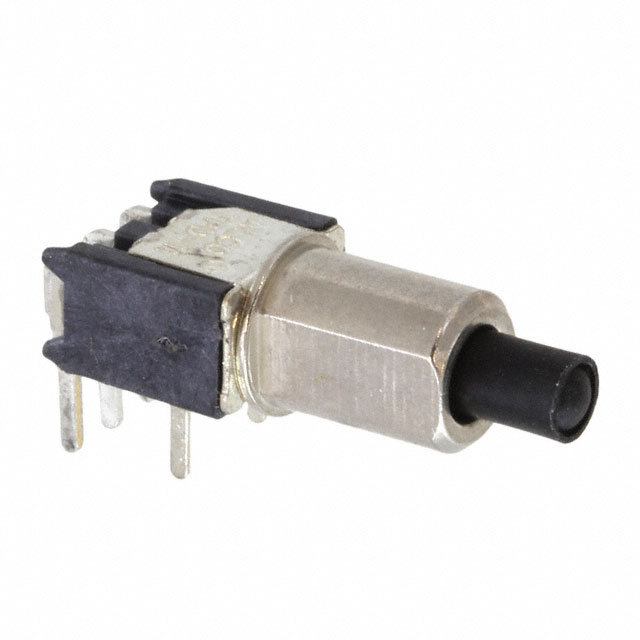

Pushbutton Switch SPDT Standard Through Hole, Right Angle

Technical documentation and resources

No documents available
