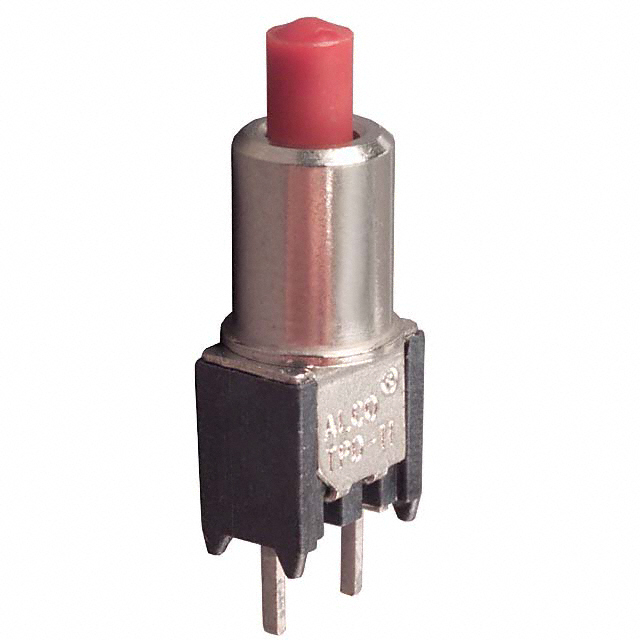

TPD11CGPC2

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Type	Actuator Type	Mounting Type	Circuit	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Actuator Marking	Color - Actuator/Cap	Switch Function	Termination Style	Voltage Rating - AC
TE Connectivity Raychem Cable Protection TPD11CGRA2	0.4 VA	Standard	Round Plunger	Through Hole Right Angle	SPST-NO	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Red	Off-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11FGPC0	0.4 VA	Standard	Round Plunger	Through Hole	SPDT	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Black	On-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11CGPCES0	0.4 VA	Standard	Round Plunger	Through Hole	SPST-NO	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Black	Off-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11FGRA2	0.4 VA	Standard	Round Plunger	Through Hole Right Angle	SPDT	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Red	On-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11FGRA0	0.4 VA	Standard	Round Plunger	Through Hole Right Angle	SPDT	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Black	On-Mom	PC Pin	20 V
TE Connectivity Raychem Cable Protection TPD11CGPC2	0.4 VA	Standard	Round Plunger	Through Hole	SPST-NO	20 V	65 °C	-30 ░C	100000 Cycles	No Marking	Red	Off-Mom	PC Pin	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.79

General part information

Pushbutton Switch SPST-NO Standard Through Hole
