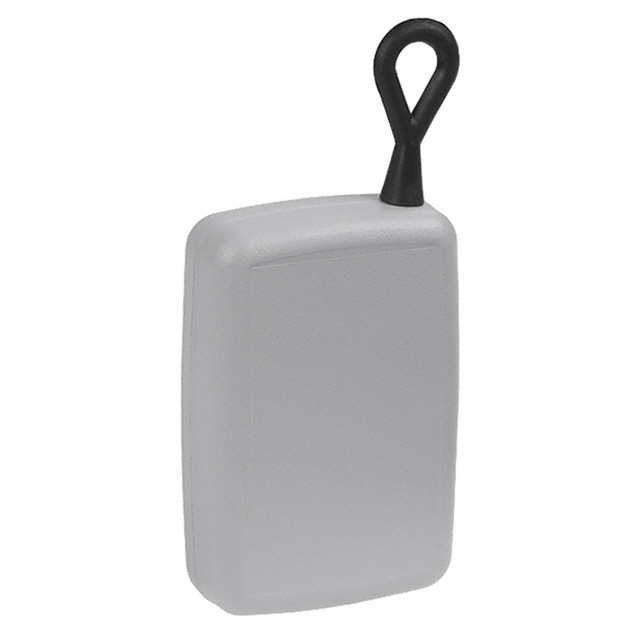

CH4KH,GY

Active

Serpac

BOX ABS GRAY 2.265"L X 1.515"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 2.265"L X 1.515"W

Technical Specifications

Parameters and characteristics for this part

Specification	CH4KH,GY

Area (L x W) [custom]	3.43 in²
Area (L x W) [custom]	22.1 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Key Holder
Height [z]	14.86 mm
Height [z]	0.585 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.265 in
Size / Dimension [x]	57.53 mm
Size / Dimension [y]	1.515 in
Size / Dimension [y]	38.48 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	10.43 g
Weight	0.023 lb

Part	Material	Features	Material Flammability Rating	Ratings	Weight	Weight	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Height [z]	Height [z]	Container Type	Color	Area (L x W)	Area (L x W)
Serpac CH4KH,BK	Plastic ABS	Key Holder	UL94 HB	IP40	10.43 g	0.023 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Black
Serpac CH4PC,AL	Plastic ABS	Pocket Clip	UL94 HB	IP40	13.15 g	0.029 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Almond
Serpac CH4,GY	Plastic ABS		UL94 HB	IP40	9.98 g	0.022 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Gray
Serpac CH4,BK	Plastic ABS		UL94 HB	IP40	9.98 g	0.022 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in			14.86 mm	0.585 in	Box	Black	3.43 in˛	22.1 cm˛
Serpac CH4KH,GY	Plastic ABS	Key Holder	UL94 HB	IP40	10.43 g	0.023 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Gray
Serpac CH4PC,BK	Plastic ABS	Pocket Clip	UL94 HB	IP40	13.15 g	0.029 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.26

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 2.265" L x 1.515" W (57.53mm x 38.48mm) X 0.585" (14.86mm)

Technical documentation and resources

No documents available
