CH4PC,BK

Active

Serpac

BOX ABS BLACK 2.265"L X 1.515"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 2.265"L X 1.515"W

Technical Specifications

Parameters and characteristics for this part

Specification	CH4PC,BK

Area (L x W) [custom]	3.43 in²
Area (L x W) [custom]	22.1 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	14.86 mm
Height [z]	0.585 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.265 in
Size / Dimension [x]	57.53 mm
Size / Dimension [y]	1.515 in
Size / Dimension [y]	38.48 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.029 lb
Weight	13.15 g

Part	Material	Features	Material Flammability Rating	Ratings	Weight	Weight	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Height [z]	Height [z]	Container Type	Color	Area (L x W)	Area (L x W)
Serpac CH4KH,BK	Plastic ABS	Key Holder	UL94 HB	IP40	10.43 g	0.023 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Black
Serpac CH4PC,AL	Plastic ABS	Pocket Clip	UL94 HB	IP40	13.15 g	0.029 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Almond
Serpac CH4,GY	Plastic ABS		UL94 HB	IP40	9.98 g	0.022 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Gray
Serpac CH4,BK	Plastic ABS		UL94 HB	IP40	9.98 g	0.022 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in			14.86 mm	0.585 in	Box	Black	3.43 in˛	22.1 cm˛
Serpac CH4KH,GY	Plastic ABS	Key Holder	UL94 HB	IP40	10.43 g	0.023 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Gray
Serpac CH4PC,BK	Plastic ABS	Pocket Clip	UL94 HB	IP40	13.15 g	0.029 lb	2.265 in	57.53 mm	1.515 in	38.48 mm	Hand Held Split Sides	1.52 mm	0.06 in	3.43 in²	22.1 cm²	14.86 mm	0.585 in	Box	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

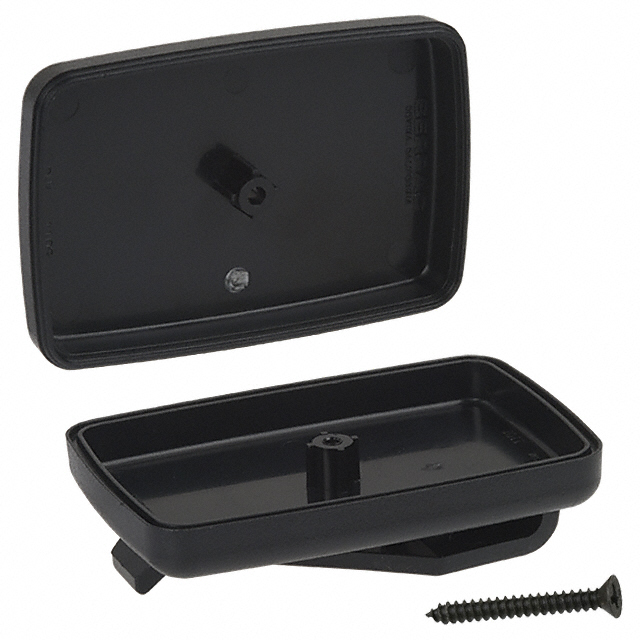

Box Plastic, ABS Black Hand Held, Split Sides 2.265" L x 1.515" W (57.53mm x 38.48mm) X 0.585" (14.86mm)

Technical documentation and resources

No documents available
