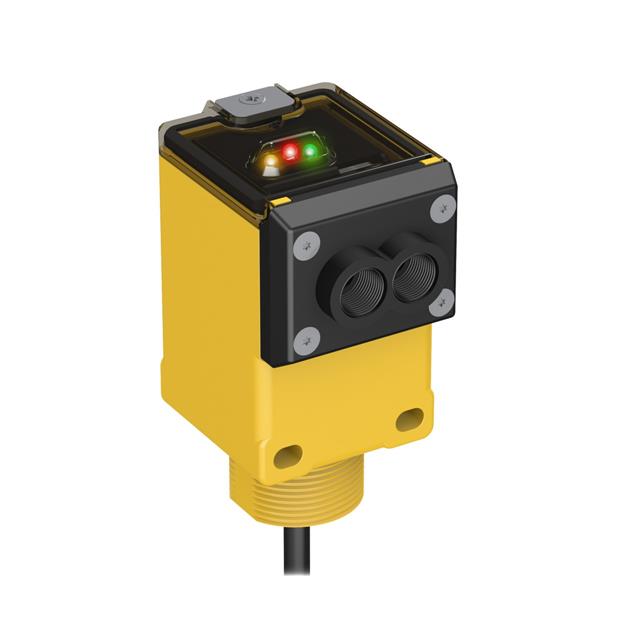

Specification	Q45BB6FV

Adjustment Type	Adjustable, Potentiometer
Cable Length	78.74 in
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67, IP67, IEC
Light Source	Red
Light Source Wavelength (Red)	650 nm
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Light-ON - Selectable, Dark-ON, PNP, Selectable, Light-ON, PNP - Dark-ON, NPN
Response Time	2 ms
Sensing Method	Fiber Optic
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

Q45B Series

Part	Ingress Protection	Adjustment Type	Cable Length	Sensing Method	Response Time	Operating Temperature (Min)	Operating Temperature (Max)	Connection Method	Output Configuration	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Light Source	Sensing Distance Minimum	Sensing Distance Maximum	Light Source Wavelength (Red)	Light Source Wavelength (Infrared)	Sensing Distance	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)
BANNER ENGINEERING Q45BW22FP	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer	78.74 in	Fiber Optic	2 ms	-40 °C	70 °C	Cable	SPST	90 VAC	250 VAC	LED
BANNER ENGINEERING Q45BB6LPQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable		Retroreflective	2 ms	-40 °C	70 °C	Connector	NPN PNP	10 VDC	30 VDC	Red	5.91 "	236.22 "	680 nm
BANNER ENGINEERING Q45BB6DXQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable		Through-Beam	2 ms	-40 °C	70 °C	Connector	NPN PNP	10 VDC	30 VDC	Infrared				880 nm	118.11 "
BANNER ENGINEERING Q45BB6RQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable		Through-Beam	2 ms	-40 °C	70 °C	Connector	NPN PNP	10 VDC	30 VDC	Infrared				880 nm	2362.2 "
BANNER ENGINEERING Q45BB6RFQ5	IEC IP67 NEMA 6P	Adjustable Potentiometer		Through-Beam	2 ms	-40 °C	70 °C	Connector		10 VDC	30 VDC	Infrared					2362.2 "
BANNER ENGINEERING Q45BW22FPQ	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer		Fiber Optic	2 ms	-40 °C	70 °C	Connector	SPST	90 VAC	250 VAC	LED
BANNER ENGINEERING Q45BB6DLQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable		Through-Beam	2 ms	-40 °C	70 °C	Connector	NPN PNP	10 VDC	30 VDC	Infrared				880 nm	70.866 "
BANNER ENGINEERING Q45BW13FVQ	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer		Fiber Optic	2 ms	-25 °C	55 °C	Connector	SPST			Red			650 nm			250 VAC	12 VDC	250 VDC	24 VAC
BANNER ENGINEERING Q45BB6CVQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer		Convergent	2 ms	-40 °C	70 °C	Connector	Dark-ON Light-ON Light-ON - Selectable NPN PNP PNP - Dark-ON Selectable	10 VDC	30 VDC	Red			680 nm		1.496 "
BANNER ENGINEERING Q45BB6LVQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable		Retroreflective	2 ms	-40 °C	70 °C	Connector	NPN PNP	10 VDC	30 VDC	Red	3.15 "	354.33 "	680 nm
