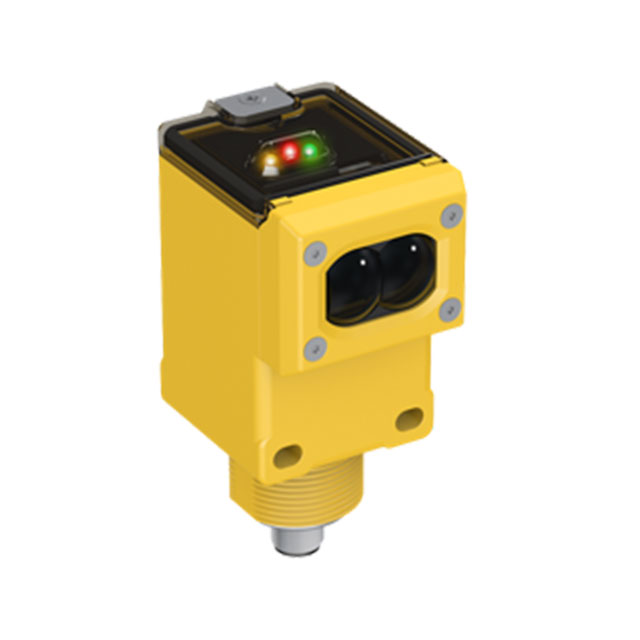

Q45BB6DXQ5

Active

BANNER ENGINEERING

PHOTO SEN DIFFUSED 3M BIPOLAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q45BB6DXQ5

Active

BANNER ENGINEERING

PHOTO SEN DIFFUSED 3M BIPOLAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q45BB6DXQ5

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Infrared
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN/PNP
Response Time	2 ms
Sensing Distance	3000 mm
Sensing Distance	118.11 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Q45B Series

Part	Output Configuration	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Response Time	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connection Method	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Adjustment Type	Sensing Distance	Sensing Distance	Sensing Distance [Min]	Sensing Distance [Max]
BANNER ENGINEERING Q45BW22FP	SPST	LED	250 VAC	90 VAC	Fiber Optic	2 ms	78.74 in	2 m	-40 °C	70 °C	NEMA 6P IEC IP67	Cable
BANNER ENGINEERING Q45BB6LPQ5	NPN/PNP	Red	30 VDC	10 VDC	Retroreflective	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector	6 m	15 cm	5.91 "	236.22 in	Adjustable
BANNER ENGINEERING Q45BB6DXQ5	NPN/PNP	Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector					Adjustable	3000 mm	118.11 in
BANNER ENGINEERING Q45BB6RQ5	NPN/PNP	Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector					Adjustable	60 m	196.85 ft
BANNER ENGINEERING Q45BB6RFQ5		Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	IP67	Connector						60 m	196.85 ft
BANNER ENGINEERING Q45BW22FPQ	SPST	LED	250 VAC	90 VAC	Fiber Optic	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector
BANNER ENGINEERING Q45BB6DLQ5	NPN/PNP	Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector					Adjustable	1.8 m	70.866 "
BANNER ENGINEERING Q45BW13FVQ	SPST	RED (650nm)	250 V 250 VAC	12 V 24 VAC	Fiber Optic	2 ms			-25 °C	55 °C	NEMA 6P IEC IP67	Connector
BANNER ENGINEERING Q45BB6CVQ5	Dark-ON/Light-ON NPN/PNP Selectable	Red	30 VDC	10 VDC	Convergent	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector						38 mm	1.496 in
BANNER ENGINEERING Q45BB6LVQ5	NPN/PNP	Red	30 VDC	10 VDC	Retroreflective	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector	9000 mm	3.15 "			Adjustable			80 mm	354.33 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 153.00
Newark	Each	1	$ 220.03

Description

General part information

Q45B Series

Through-Beam Optical Sensor 118.110" (3m) NPN/PNP
