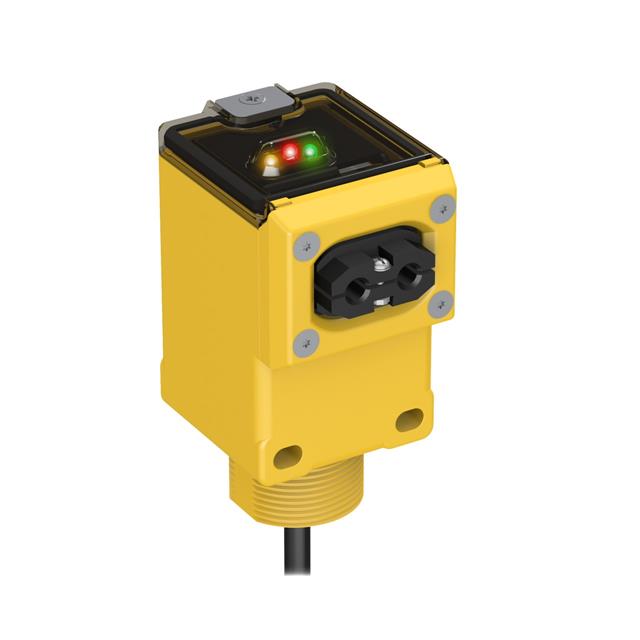

Q45BW22FP

Active

BANNER ENGINEERING

Q45 SERIES: PLASTIC FIBER OPTIC<

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q45BW22FP

Active

BANNER ENGINEERING

Q45 SERIES: PLASTIC FIBER OPTIC<

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q45BW22FP

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	SPST
Response Time	2 ms
Sensing Method	Fiber Optic
Voltage - Supply [Max]	250 VAC
Voltage - Supply [Min]	90 VAC

Q45B Series

Part	Output Configuration	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Response Time	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connection Method	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Adjustment Type	Sensing Distance	Sensing Distance	Sensing Distance [Min]	Sensing Distance [Max]
BANNER ENGINEERING Q45BW22FP	SPST	LED	250 VAC	90 VAC	Fiber Optic	2 ms	78.74 in	2 m	-40 °C	70 °C	NEMA 6P IEC IP67	Cable
BANNER ENGINEERING Q45BB6LPQ5	NPN/PNP	Red	30 VDC	10 VDC	Retroreflective	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector	6 m	15 cm	5.91 "	236.22 in	Adjustable
BANNER ENGINEERING Q45BB6DXQ5	NPN/PNP	Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector					Adjustable	3000 mm	118.11 in
BANNER ENGINEERING Q45BB6RQ5	NPN/PNP	Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector					Adjustable	60 m	196.85 ft
BANNER ENGINEERING Q45BB6RFQ5		Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	IP67	Connector						60 m	196.85 ft
BANNER ENGINEERING Q45BW22FPQ	SPST	LED	250 VAC	90 VAC	Fiber Optic	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector
BANNER ENGINEERING Q45BB6DLQ5	NPN/PNP	Infrared	30 VDC	10 VDC	Through-Beam	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector					Adjustable	1.8 m	70.866 "
BANNER ENGINEERING Q45BW13FVQ	SPST	RED (650nm)	250 V 250 VAC	12 V 24 VAC	Fiber Optic	2 ms			-25 °C	55 °C	NEMA 6P IEC IP67	Connector
BANNER ENGINEERING Q45BB6CVQ5	Dark-ON/Light-ON NPN/PNP Selectable	Red	30 VDC	10 VDC	Convergent	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector						38 mm	1.496 in
BANNER ENGINEERING Q45BB6LVQ5	NPN/PNP	Red	30 VDC	10 VDC	Retroreflective	2 ms			-40 °C	70 °C	NEMA 6P IEC IP67	Connector	9000 mm	3.15 "			Adjustable			80 mm	354.33 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 184.00
Newark	Each	1	$ 193.00

Description

General part information

Q45B Series

Fiber Optic Optical Sensor SPST
