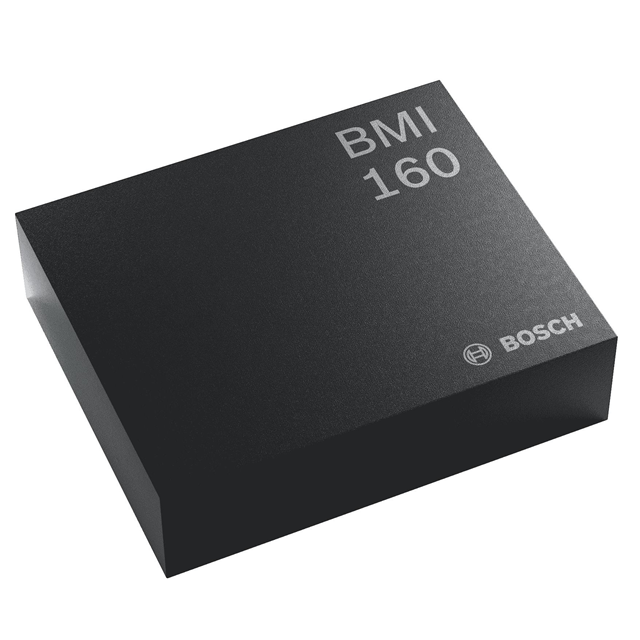

BMI160

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO I2C/SPI 14LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO I2C/SPI 14LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMI160	BMI160 Series

Contents	-	Board(s)
Function	-	Accelerometer, Gyroscope
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	14-VFLGA Module	14-VFLGA Module
Sensor Type	Accelerometer, Gyroscope, 6 Axis	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	14-LGA (2.5x3)	14-LGA (2.5x3)
Type	-	Sensor
Utilized IC / Part	-	BMI160

SHUTTLE BOARD BMI160

Part	Utilized IC / Part	Contents	Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Sensor Type	Output Type	Package / Case	Supplier Device Package
Bosch Sensortec BMI160-SHUTL	BMI160	Board(s)	Sensor	Accelerometer, Gyroscope
Bosch Sensortec BMI160					85 °C	-40 °C	Surface Mount	6 Axis, Accelerometer, Gyroscope	I2C, SPI	14-VFLGA Module	14-LGA (2.5x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Gyroscope, 6 Axis Sensor I2C, SPI Output
