BMI160-SHUTL

Obsolete

Bosch Sensortec

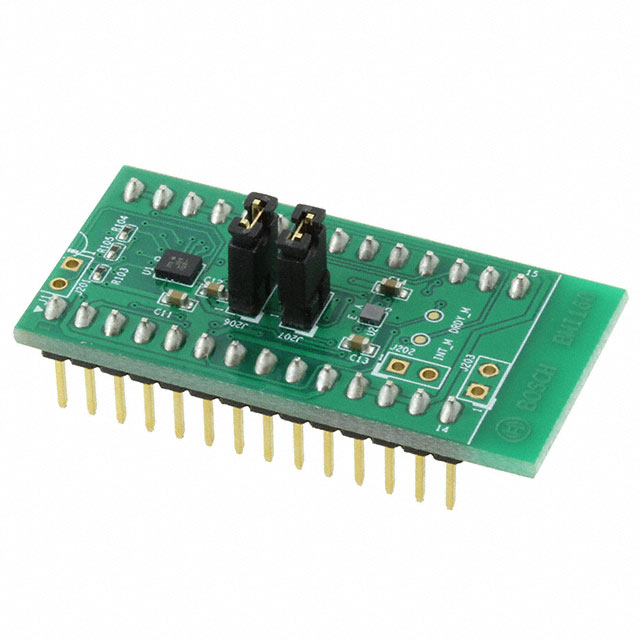

SHUTTLE BOARD BMI160

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMI160

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMI160 Accelerometer, Gyroscope Sensor Platform Evaluation Expansion Board

Technical documentation and resources

Specification	BMI160-SHUTL	BMI160 Series

Contents	Board(s)	Board(s)
Function	Accelerometer, Gyroscope	Accelerometer, Gyroscope
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	14-VFLGA Module
Sensor Type	-	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	-	14-LGA (2.5x3)
Type	Sensor	Sensor
Utilized IC / Part	BMI160	BMI160

Part	Utilized IC / Part	Contents	Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Sensor Type	Output Type	Package / Case	Supplier Device Package
Bosch Sensortec BMI160-SHUTL	BMI160	Board(s)	Sensor	Accelerometer, Gyroscope
Bosch Sensortec BMI160					85 °C	-40 °C	Surface Mount	6 Axis, Accelerometer, Gyroscope	I2C, SPI	14-VFLGA Module	14-LGA (2.5x3)
