JWMW11RC1A

Active

NKK Switches

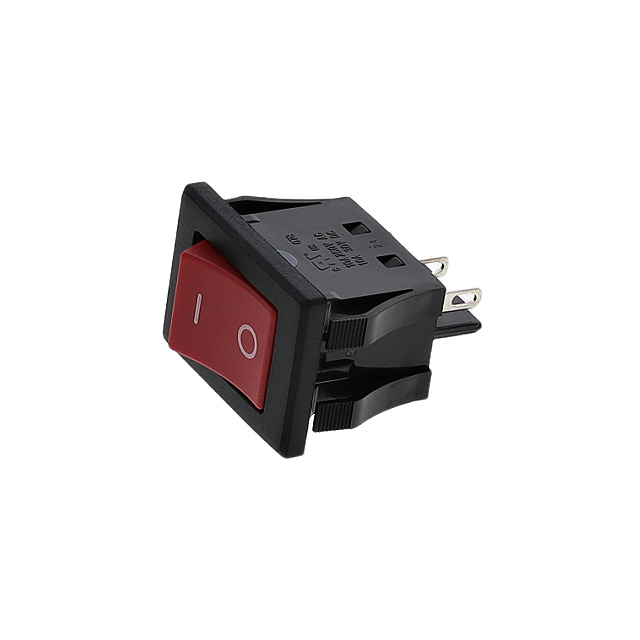

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWMW11RC1A

Active

NKK Switches

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWMW11RC1A

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	25 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

JWMW11 Series

Part	Voltage Rating - DC	Circuit	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Actuator Type	Features	Termination Style	Termination Style	Termination Style	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Mounting Type	Mechanical Life	Actuator Marking	Switch Function	Voltage Rating - AC	Electrical Life
NKK Switches JWMW11RAA/UC	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	No Marking	On-Off	125 V	25000 Steps
NKK Switches JWMW11RA2A-184A	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	O -	On-Off	125 V	25000 Steps
NKK Switches JWMW11RC1A	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Red	Panel Mount Snap-In	25000 Steps	O I	On-Off	125 V	25000 Steps
NKK Switches JWMW11RAA	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	No Marking	On-Off	125 V	25000 Steps
NKK Switches JWMW11RA1A	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	O I	On-Off	125 V	25000 Steps
