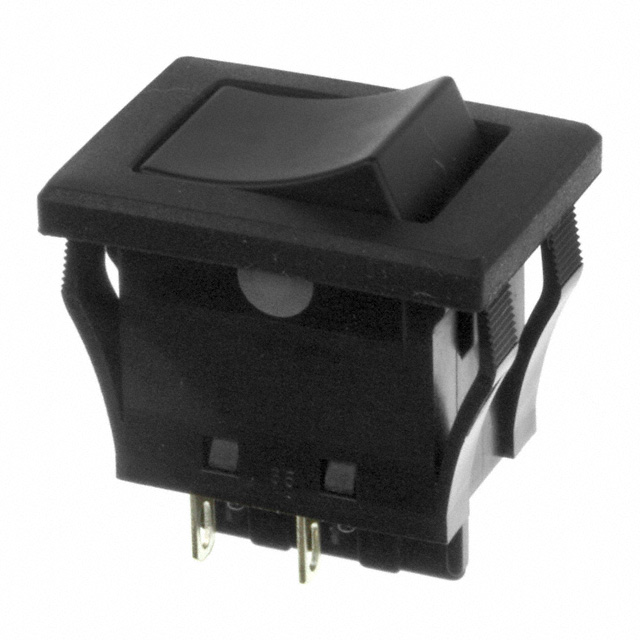

SWITCH ROCKER ON NONE OFF SPST QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 30VDC 25000CYCLES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

JWMW11RAA

Active

NKK Switches

SWITCH ROCKER ON NONE OFF SPST QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 30VDC 25000CYCLES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWMW11RAA

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	25 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

JWMW11 Series

Part	Voltage Rating - DC	Circuit	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Actuator Type	Features	Termination Style	Termination Style	Termination Style	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Mounting Type	Mechanical Life	Actuator Marking	Switch Function	Voltage Rating - AC	Electrical Life
NKK Switches JWMW11RAA/UC	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	No Marking	On-Off	125 V	25000 Steps
NKK Switches JWMW11RA2A-184A	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	O -	On-Off	125 V	25000 Steps
NKK Switches JWMW11RC1A	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Red	Panel Mount Snap-In	25000 Steps	O I	On-Off	125 V	25000 Steps
NKK Switches JWMW11RAA	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	No Marking	On-Off	125 V	25000 Steps
NKK Switches JWMW11RA1A	30 V	SPST	IP67 - Dust Tight Waterproof	25 mm	15.4 mm	CSA UL VDE	Concave (Curved)	Epoxy Sealed Terminals	0.11 in	Quick Connect Solder	2.8 mm	10 A	-25 °C	85 °C	Black	Panel Mount Snap-In	25000 Steps	O I	On-Off	125 V	25000 Steps
