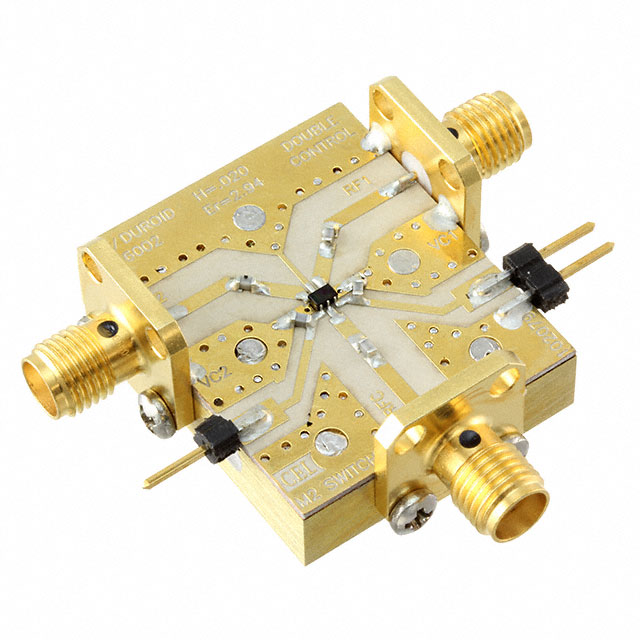

CG2179M2-EVAL

Active

CEL

EVAL BOARD FOR CG2179M2

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2179M2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2179M2-EVAL	CG2179 Series

Circuit	-	SPDT
For Use With/Related Products	CG2179M2	CG2179M2
Frequency Range	-	3 GHz
Frequency Range	-	50 MHz
IIP3	-	58 dBm
Impedance	-	50 Ohms
Insertion Loss	-	0.45 dB
Isolation	-	23 dB
Package / Case	-	6-SMD, 6-SMD, Gull Wing
RF Type	-	802.11b/g/n/ac
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	6-Minimold
Test Frequency	-	3 GHz
Type	Switch, SPDT	Switch, SPDT
Voltage - Supply	-	1.8 V
Voltage - Supply	-	5 V

EVAL BOARD FOR CG2179M2

Part	For Use With/Related Products	Type	Supplied Contents	Impedance	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Test Frequency	Circuit	Insertion Loss	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	RF Type	Isolation	IIP3
CEL CG2179M2-EVAL	CG2179M2	Switch, SPDT	Board(s)
CEL CG2179M2				50 Ohms	6-SMD	3 GHz	50 MHz	3 GHz	SPDT	0.45 dB	1.8 V	5 V	6-Minimold
CEL CG2179M2-C4				50 Ohms	6-SMD, Gull Wing	3 GHz	50 MHz	3 GHz	SPDT	0.45 dB	1.8 V	5 V	6-Minimold	802.11b/g/n/ac	23 dB	58 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CG2179M2 - Switch, SPDT 50MHz ~ 3GHz Evaluation Board
