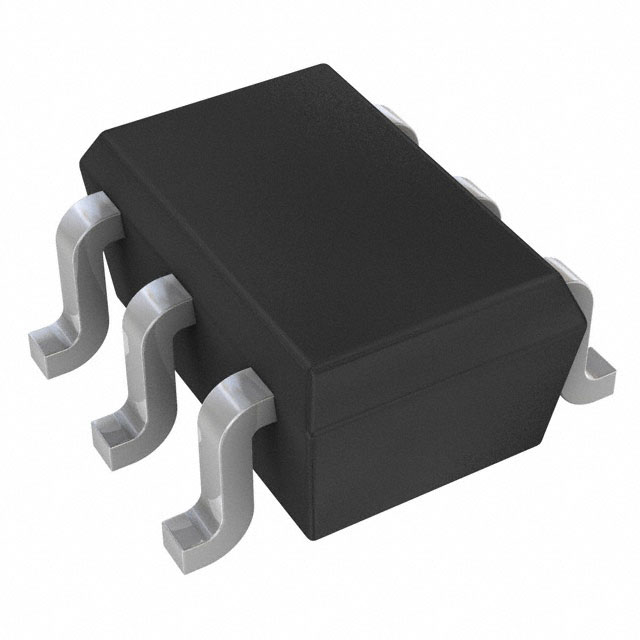

CG2179M2

Active

CEL

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

Search across all available documentation for this part.

Active

CEL

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG2179M2	CG2179 Series

Circuit	SPDT	SPDT
For Use With/Related Products	-	CG2179M2
Frequency Range [Max]	3 GHz	3 GHz
Frequency Range [Min]	50 MHz	50 MHz
IIP3	-	58 dBm
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.45 dB	0.45 dB
Isolation	-	23 dB
Package / Case	6-SMD	6-SMD, 6-SMD, Gull Wing
RF Type	-	802.11b/g/n/ac
Supplied Contents	-	Board(s)
Supplier Device Package	6-Minimold	6-Minimold
Test Frequency	3 GHz	3 GHz
Type	-	Switch, SPDT
Voltage - Supply [Max]	5 V	5 V
Voltage - Supply [Min]	1.8 V	1.8 V

EVAL BOARD FOR CG2179M2

Part	For Use With/Related Products	Type	Supplied Contents	Impedance	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Test Frequency	Circuit	Insertion Loss	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	RF Type	Isolation	IIP3
CEL CG2179M2-EVAL	CG2179M2	Switch, SPDT	Board(s)
CEL CG2179M2				50 Ohms	6-SMD	3 GHz	50 MHz	3 GHz	SPDT	0.45 dB	1.8 V	5 V	6-Minimold
CEL CG2179M2-C4				50 Ohms	6-SMD, Gull Wing	3 GHz	50 MHz	3 GHz	SPDT	0.45 dB	1.8 V	5 V	6-Minimold	802.11b/g/n/ac	23 dB	58 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC SPDT 3 GHz 50Ohm 6-Minimold
