M80-4862605

Active

Harwin Inc.

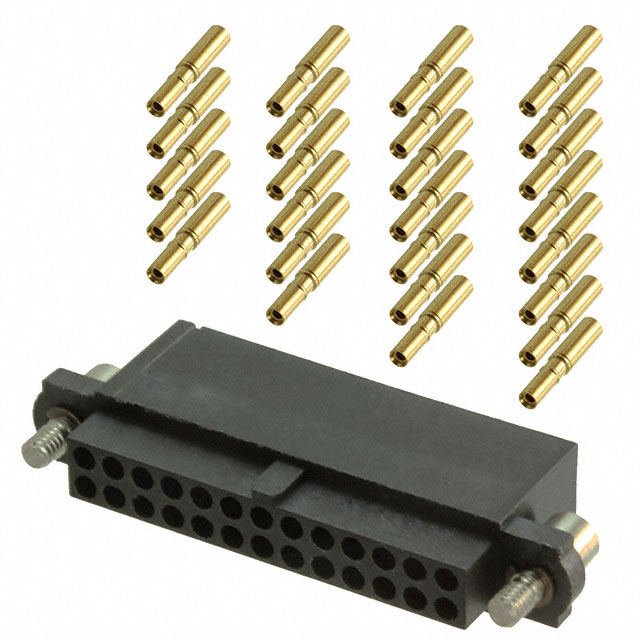

BOARD CONNECTOR, 26 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, LEAD FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +5

M80-4862605

Active

Harwin Inc.

BOARD CONNECTOR, 26 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, LEAD FREE

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4862605

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Polarizing Key, Jackscrews, Potting Wall
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-486 Series

Part	Row Spacing	Row Spacing	Mounting Type	Contact Type	Connector Type	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Cable Termination	Wire Type	Pitch [x]	Pitch [x]
Harwin Inc. M80-4863405	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	34	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4860605	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	6	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862042	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	20	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4861205	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	12	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862005A	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	20	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862605	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	26	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4861005	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	10	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862605A	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	26	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4860605A	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	6	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4861242	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	12	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.97
		10	$ 20.80
		25	$ 18.84
		50	$ 17.52
		100	$ 16.31
		250	$ 14.90
		500	$ 13.95
Newark	Each	10	$ 21.55
		50	$ 18.84
		100	$ 16.57
		250	$ 15.49
		500	$ 15.16
		1000	$ 14.41

Description

General part information

M80-486 Series

26 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG

Documents

Technical documentation and resources

M80-001

M80, M83 Series Spec Sheet

Datasheet

M80-0110001

Datasheet

M80-4862605

Deep-Dive with AI

M80-4862605

Deep-Dive with AI

Technical Specifications

M80-486 Series

Pricing

Description

M80-486 Series

Documents

M80-001

M80, M83 Series Spec Sheet

M80-0110001

Datasheet

Drawing EN

3D Product Image EN

Technical Data Sheet EN

M80-486 Series
