M80-4860605A

Active

Harwin Inc.

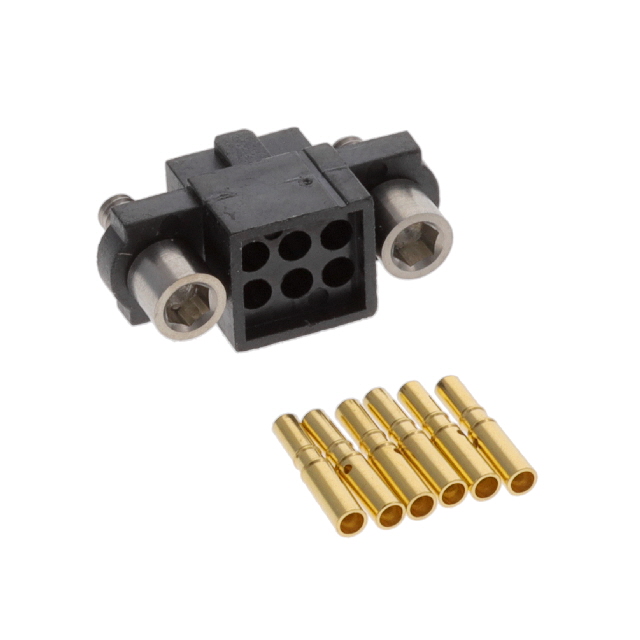

3+3 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-001 +2

M80-4860605A

Active

Harwin Inc.

3+3 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4860605A

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Polarizing Key, Jackscrews, Potting Wall
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-486 Series

Part	Row Spacing	Row Spacing	Mounting Type	Contact Type	Connector Type	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Cable Termination	Wire Type	Pitch [x]	Pitch [x]
Harwin Inc. M80-4863405	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	34	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4860605	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	6	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862042	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	20	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4861205	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	12	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862005A	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	20	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862605	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	26	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4861005	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	10	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4862605A	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	26	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4860605A	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	6	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm
Harwin Inc. M80-4861242	2 mm	0.079 in	Free Hanging (In-Line)	Female Socket	Receptacle	12	Jackscrews Polarizing Key Potting Wall	0.3 Ám	11.8 Áin	Gold	Black	24 AWG	28 AWG	2	Crimp	Discrete	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.49
		10	$ 32.83
		100	$ 29.39
Newark	Each	10	$ 34.32
		50	$ 30.70
		100	$ 29.70
		250	$ 28.10
		500	$ 27.29
		1000	$ 26.69

Description

General part information

M80-486 Series

6 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
