AF1T92STCJ-7BAIP

Obsolete

ATP Electronics, Inc.

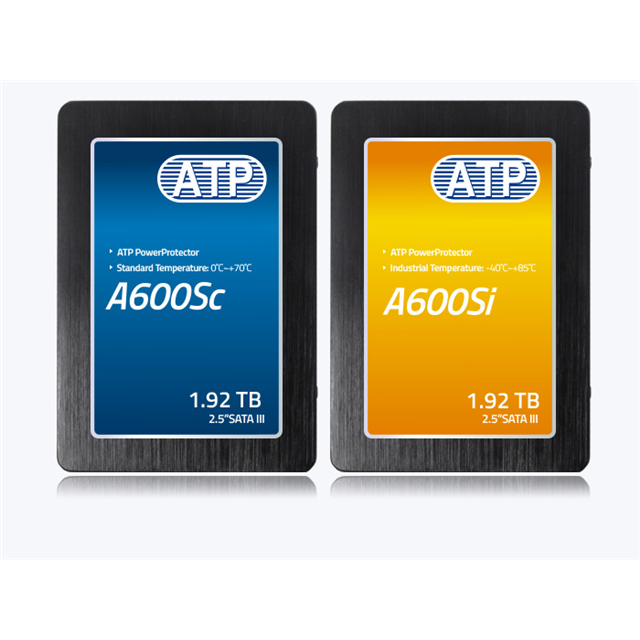

SSD 1.92TB 2.5" SATAIII I-TEMP

Search across all available documentation for this part.

Obsolete

ATP Electronics, Inc.

SSD 1.92TB 2.5" SATAIII I-TEMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State Drive (SSD) FLASH - NAND (3D) 1.92TB SATA III 2.5"

Technical documentation and resources

Specification	AF1T92STCJ-7BAIP	AF1T92 Series

Form Factor	2.5 in	2.5 in
Form Factor	-	M.2 Module, PCIe
Memory Size	1.92 TB	1.92 TB
Memory Type	Solid State Drive (SSD) FLASH - NAND (3D)	Solid State Drive (SSD) FLASH - NAND (3D)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	100 mm	80 - 100 mm
Size / Dimension [y]	69.9 mm	22 - 69.9 mm
Size / Dimension [z]	7 mm	3.5 - 7 mm
Speed - Read	560 MB/s	3.28 - 560 MB/s
Speed - Write	480 MB/s	3.05 - 480 MB/s
Type	SATA III	SATA III, NVMe

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Memory Type	Speed - Read	Type	Speed - Write	Form Factor
ATP Electronics, Inc. AF1T92STCJ-7BAIP	7 mm	69.9 mm	100 mm	1.92 TB	85 °C	-40 °C	2.5 in	Solid State Drive (SSD) FLASH - NAND (3D)	560 MB/s	SATA III	480 MB/s
ATP Electronics, Inc. AF1T92STJA-8BAIP	3.5 mm	22 mm	80 mm	1.92 TB	85 °C	-40 °C		Solid State Drive (SSD) FLASH - NAND (3D)	3.28 GB/s	NVMe	3.05 GB/s	M.2 Module, PCIe
