AF1T92STJA-8BAIP

Obsolete

ATP Electronics, Inc.

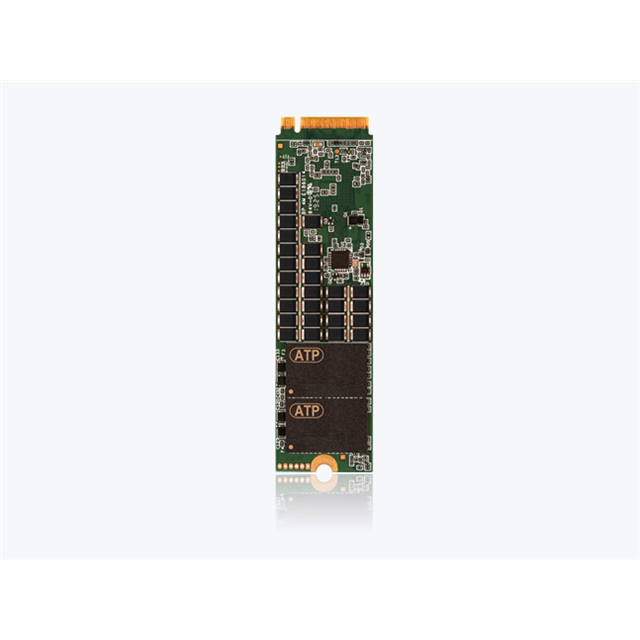

SSD 1.92TB M.2 PCIE 3D NVME

Search across all available documentation for this part.

Obsolete

ATP Electronics, Inc.

SSD 1.92TB M.2 PCIE 3D NVME

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AF1T92STJA-8BAIP	AF1T92 Series

Form Factor	M.2 Module, PCIe	M.2 Module, PCIe
Form Factor	-	2.5 in
Memory Size	1.92 TB	1.92 TB
Memory Type	Solid State Drive (SSD) FLASH - NAND (3D)	Solid State Drive (SSD) FLASH - NAND (3D)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	80 mm	80 - 100 mm
Size / Dimension [y]	22 mm	22 - 69.9 mm
Size / Dimension [z]	3.5 mm	3.5 - 7 mm
Speed - Read	3.28 GB/s	3.28 - 560 MB/s
Speed - Write	3.05 GB/s	3.05 - 480 MB/s
Type	NVMe	SATA III, NVMe

SSD 1.92TB 2.5" SATAIII I-TEMP

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Form Factor	Memory Type	Speed - Read	Type	Speed - Write	Form Factor
ATP Electronics, Inc. AF1T92STCJ-7BAIP	7 mm	69.9 mm	100 mm	1.92 TB	85 °C	-40 °C	2.5 in	Solid State Drive (SSD) FLASH - NAND (3D)	560 MB/s	SATA III	480 MB/s
ATP Electronics, Inc. AF1T92STJA-8BAIP	3.5 mm	22 mm	80 mm	1.92 TB	85 °C	-40 °C		Solid State Drive (SSD) FLASH - NAND (3D)	3.28 GB/s	NVMe	3.05 GB/s	M.2 Module, PCIe

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State Drive (SSD) FLASH - NAND (3D) 1.92TB NVMe M.2 Module, PCIe
