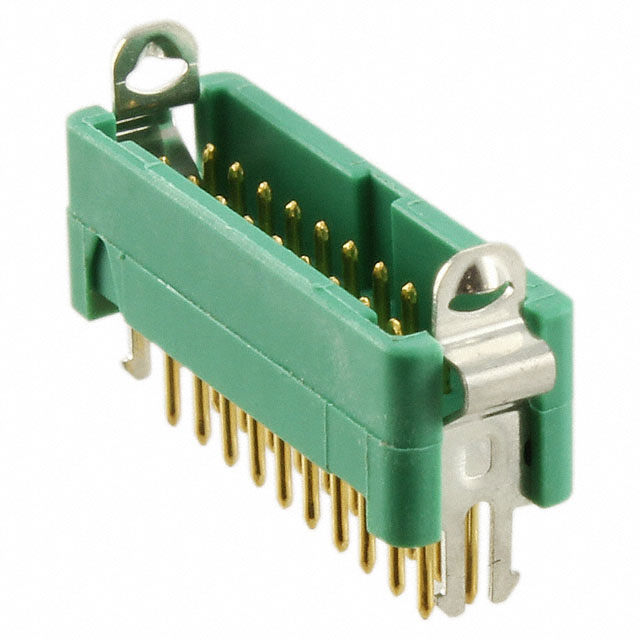

G125-MV12005L1P
ActiveHarwin Inc.
10+10 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-MV12005L1P
ActiveHarwin Inc.
10+10 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MV12005L1P |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Features | Pick and Place, Board Lock |
| Insulation Color | Green |
| Insulation Height | 4.9 mm |
| Insulation Height | 0.193 in |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mated Stacking Heights | 7.25 mm, 7.35 mm, 7.7 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
G125-MV1 Series
| Part | Contact Type | Mounting Type | Mated Stacking Heights | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Number of Rows | Insulation Height | Insulation Height | Style | Connector Type | Insulation Material | Insulation Color | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Termination | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Number of Positions Loaded | Material Flammability Rating | Current Rating (Amps) | Contact Finish - Mating | Contact Shape | Features | Number of Positions | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.35 mm 7.7 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 10 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | Push-Pull | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Board Lock Pick and Place | |||||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.35 mm 7.7 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 34 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | Latch Lock | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Board Lock Pick and Place | |||||
Harwin Inc. | Male Pin | Through Hole | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Mating Flange Mounting Flange Pick and Place | 16 | |||||||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.35 mm 7.7 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 20 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | Latch Lock | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Board Lock Pick and Place | |||||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.33 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 12 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Mating Flange Mounting Flange Pick and Place | Gold | 8 µin | 0.203 µm | 450 V | ||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.33 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 6 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Mating Flange Mounting Flange Pick and Place Polarizing Key | Gold | 8 µin | 0.203 µm | 450 V | ||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.35 mm 7.7 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 10 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | Latch Lock | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Board Lock Pick and Place | |||||
Harwin Inc. | Male Pin | Through Hole | 7.35 mm 7.45 mm 7.8 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 50 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Mating Flange Mounting Flange Pick and Place | 450 V | |||||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.35 mm 7.7 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 10 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | Push-Pull | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Board Lock Pick and Place | |||||
Harwin Inc. | Male Pin | Through Hole | 7.25 mm 7.35 mm 7.7 mm | 0.203 Ám | 8 Áin | Phosphor Bronze | 2 | 4.9 mm | 0.193 in | Board to Board Cable | Header | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Green | 12 | -65 ░C | 150 °C | 0.118 in | 3 mm | 1.25 mm | 0.049 in | Solder | Latch Lock | 0.049 in | 1.25 mm | Shrouded - 4 Wall | All | UL94 V-0 | 2 A | Gold | Circular | Board Lock Pick and Place |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-MV1 Series
Connector Header Through Hole 20 position 0.049" (1.25mm)
