G125-MV11205M3P

Active

Harwin Inc.

CONN HEADER VERT 12POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0 G125-224069600 +2

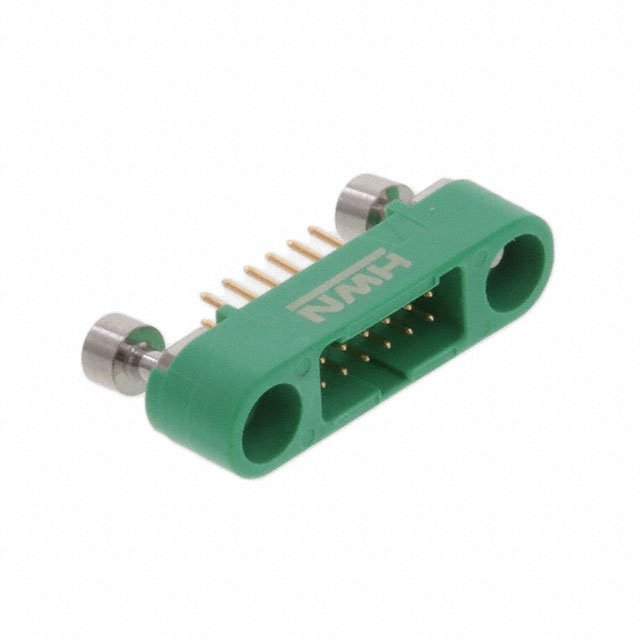

G125-MV11205M3P

Active

Harwin Inc.

CONN HEADER VERT 12POS 1.25MM

Deep-Dive with AI

DocumentsG125-2040696L0 G125-224069600 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MV11205M3P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	8 µin
Contact Finish Thickness - Post	0.203 µm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Features	Mounting Flange, Pick and Place, Mating Flange
Insulation Color	Green
Insulation Height	4.9 mm
Insulation Height	0.193 in
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mated Stacking Heights	7.25 mm, 7.33 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	450 V

G125-MV1 Series

Part	Contact Type	Mounting Type	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Rows	Insulation Height	Insulation Height	Style	Connector Type	Insulation Material	Insulation Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Contact Shape	Features	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating
Harwin Inc. G125-MV11005L0R	Male Pin	Through Hole	7.25 mm 7.35 mm 7.7 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	10	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder	Push-Pull	0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Board Lock Pick and Place
Harwin Inc. G125-MV13405L1P	Male Pin	Through Hole	7.25 mm 7.35 mm 7.7 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	34	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder	Latch Lock	0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Board Lock Pick and Place
Harwin Inc. G125-MV11605M2P	Male Pin	Through Hole		0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green		-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder		0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Mating Flange Mounting Flange Pick and Place	16
Harwin Inc. G125-MV12005L1P	Male Pin	Through Hole	7.25 mm 7.35 mm 7.7 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	20	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder	Latch Lock	0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Board Lock Pick and Place
Harwin Inc. G125-MV11205M3P	Male Pin	Through Hole	7.25 mm 7.33 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	12	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder		0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Mating Flange Mounting Flange Pick and Place		Gold	8 µin	0.203 µm	450 V
Harwin Inc. G125-MV10605M3R	Male Pin	Through Hole	7.25 mm 7.33 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	6	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder		0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Mating Flange Mounting Flange Pick and Place Polarizing Key		Gold	8 µin	0.203 µm	450 V
Harwin Inc. G125-MV11005L1P	Male Pin	Through Hole	7.25 mm 7.35 mm 7.7 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	10	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder	Latch Lock	0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Board Lock Pick and Place
Harwin Inc. G125-MV15005M2P	Male Pin	Through Hole	7.35 mm 7.45 mm 7.8 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	50	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder		0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Mating Flange Mounting Flange Pick and Place					450 V
Harwin Inc. G125-MV11005L0P	Male Pin	Through Hole	7.25 mm 7.35 mm 7.7 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	10	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder	Push-Pull	0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Board Lock Pick and Place
Harwin Inc. G125-MV11205L1P	Male Pin	Through Hole	7.25 mm 7.35 mm 7.7 mm	0.203 Ám	8 Áin	Phosphor Bronze	2	4.9 mm	0.193 in	Board to Board Cable	Header	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Green	12	-65 ░C	150 °C	0.118 in	3 mm	1.25 mm	0.049 in	Solder	Latch Lock	0.049 in	1.25 mm	Shrouded - 4 Wall	All	UL94 V-0	2 A	Gold	Circular	Board Lock Pick and Place
