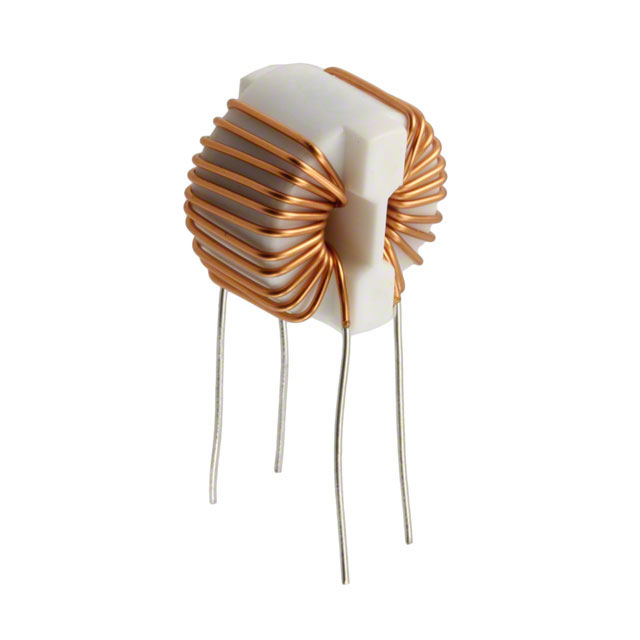

SC-02-06G

Active

KEMET

COMMON MODE CHOKES DUAL 600UH 100KHZ 2A 0.05OHM DCR THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSC-02-06G Datasheet +2

SC-02-06G

Active

KEMET

COMMON MODE CHOKES DUAL 600UH 100KHZ 2A 0.05OHM DCR THRU-HOLE

Deep-Dive with AI

DocumentsSC-02-06G Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC-02-06G

Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max) [Max]	50 mOhm
Filter Type	Power Line
Height (Max) [Max]	0.689 in
Height (Max) [Max]	17.5 mm
Inductance @ Frequency	600 µH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	No Base, Vertical, 4 PC Pin
Size / Dimension [custom]	0.551 "
Size / Dimension [custom]	14 mm
Size / Dimension [diameter]	17.5 mm
Size / Dimension [diameter]	0.689 "
Voltage Rating - AC	250 V
Voltage Rating - DC	250 V

SC22-08 Series

Part	Mounting Type	Voltage Rating - DC	Number of Lines	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Current Rating (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Filter Type	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max]	DC Resistance (DCR) (Max)	Height (Max)	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
KEMET SC-15-12JH	Through Hole	250 V	2	32 mm	1.26 in	1.2 mH	15 A	-40 °C	105 ░C	Horizontal	4 Lead	Power Line	250 V
KEMET SC-04-200JV	Through Hole	250 V	2		40 mm	29 mH	5 A	-40 °C	105 ░C	Vertical	4 Lead	Power Line	250 V	25 mm	0.984 in	35 mm	1.378 in	100 mOhm	1.575 in
KEMET SC-18-290	Through Hole	250 V	2		28 mm	2.9 mH	18 A	-40 °C	120 °C	Horizontal No Base	4 Lead	Power Line	250 V			40 mm	1.575 "		1.102 in	25 mOhm
KEMET SC-06-101	Through Hole	250 V	2			1 mH	6 A	-40 °C	120 °C	Horizontal No Base	4 Lead	Power Line	250 V			25 mm	0.984 "	27 mOhm	0.748 in		19 mm
KEMET SC-02-06G	Through Hole	250 V	2		17.5 mm	600 µH	2 A	-40 °C	105 ░C	4 PC Pin No Base Vertical		Power Line	250 V			17.5 mm		50 mOhm	0.689 in			0.551 "	0.689 "	14 mm
KEMET SC-08-E1000	Through Hole	250 V	2		50 mm	10 mH	8 A	-40 °C	120 °C	4 PC Pin No Base Vertical		Power Line	250 V			50 mm	1.969 in	70 mOhm	1.969 in
KEMET SC-15-20JH	Through Hole	250 V	2		34 mm	2 mH	15 A	-40 °C	105 ░C	Horizontal	4 Lead	Power Line	250 V			51 mm	2.008 "		1.339 in
KEMET SC-04-500	Through Hole	250 V	2			5 mH	4 A	-40 °C	105 ░C	4 PC Pin No Base Vertical		Power Line	250 V			29 mm	1.142 in	70 mOhm							29 mm	1.142 in
KEMET SC-02-20J	Through Hole	250 V	2			2 mH	2 A	-40 °C	120 °C	Vertical	4 Lead	Power Line	250 V	20 mm				110 mOhm	1.063 in		27 mm						25 mm	0.984 "	0.787 in
KEMET SC-15-35JH	Through Hole	250 V	2		34 mm	1 kHz 3.5 mH	15 A	-40 °C	105 ░C	Horizontal	4 Lead	Power Line	250 V			51 mm	2.008 "		1.339 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.46
		10	$ 1.97
		25	$ 1.60
		50	$ 1.56
		100	$ 1.52
		300	$ 1.48
		500	$ 1.46
		1000	$ 1.30
		5000	$ 1.19
Newark	Each	1	$ 2.56
		10	$ 1.61
		25	$ 1.44
		50	$ 1.26
		100	$ 1.08
		500	$ 1.05

Description

General part information

SC22-08 Series

600 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 50mOhm

Documents

Technical documentation and resources

SC-02-06G

Datasheet

KEM_LF0011_SC-G-GS.pdf

Datasheet

Manufacturer Catalogue EN

Datasheet
