SC-06-101

Active

KEMET

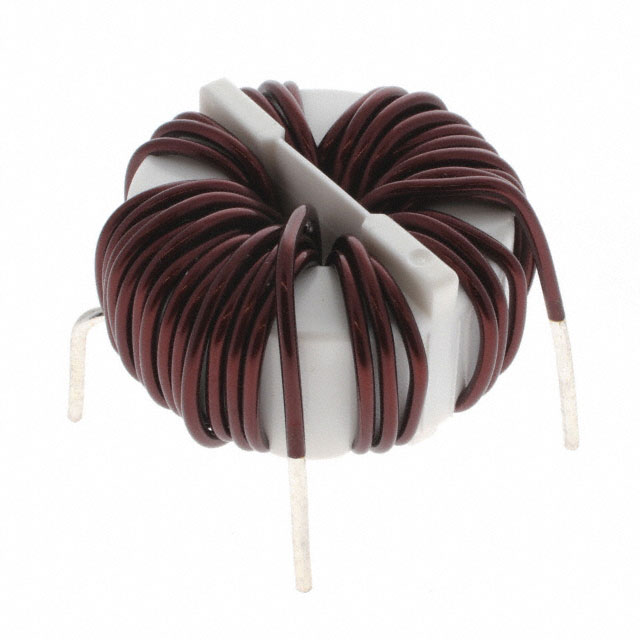

INDUCTOR: WIRE; THT; 1MH; 27MΩ; SC; 250VAC; 6A; -25÷120°C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_LF0005_SC.pdf +2

SC-06-101

Active

KEMET

INDUCTOR: WIRE; THT; 1MH; 27MΩ; SC; 250VAC; 6A; -25÷120°C

Deep-Dive with AI

DocumentsDatasheet KEM_LF0005_SC.pdf +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC-06-101

Current Rating (Max) [Max]	6 A
DC Resistance (DCR) (Max) [Max]	27 mOhm
Filter Type	Power Line
Height (Max)	19 mm
Height (Max) [Max]	0.748 in
Inductance @ Frequency	1 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	No Base, Horizontal
Package / Case	4 Lead
Size / Dimension [diameter]	25 mm
Size / Dimension [diameter]	0.984 "
Voltage Rating - AC	250 V
Voltage Rating - DC	250 V

SC22-08 Series

Part	Mounting Type	Voltage Rating - DC	Number of Lines	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Current Rating (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Filter Type	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max]	DC Resistance (DCR) (Max)	Height (Max)	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
KEMET SC-15-12JH	Through Hole	250 V	2	32 mm	1.26 in	1.2 mH	15 A	-40 °C	105 ░C	Horizontal	4 Lead	Power Line	250 V
KEMET SC-04-200JV	Through Hole	250 V	2		40 mm	29 mH	5 A	-40 °C	105 ░C	Vertical	4 Lead	Power Line	250 V	25 mm	0.984 in	35 mm	1.378 in	100 mOhm	1.575 in
KEMET SC-18-290	Through Hole	250 V	2		28 mm	2.9 mH	18 A	-40 °C	120 °C	Horizontal No Base	4 Lead	Power Line	250 V			40 mm	1.575 "		1.102 in	25 mOhm
KEMET SC-06-101	Through Hole	250 V	2			1 mH	6 A	-40 °C	120 °C	Horizontal No Base	4 Lead	Power Line	250 V			25 mm	0.984 "	27 mOhm	0.748 in		19 mm
KEMET SC-02-06G	Through Hole	250 V	2		17.5 mm	600 µH	2 A	-40 °C	105 ░C	4 PC Pin No Base Vertical		Power Line	250 V			17.5 mm		50 mOhm	0.689 in			0.551 "	0.689 "	14 mm
KEMET SC-08-E1000	Through Hole	250 V	2		50 mm	10 mH	8 A	-40 °C	120 °C	4 PC Pin No Base Vertical		Power Line	250 V			50 mm	1.969 in	70 mOhm	1.969 in
KEMET SC-15-20JH	Through Hole	250 V	2		34 mm	2 mH	15 A	-40 °C	105 ░C	Horizontal	4 Lead	Power Line	250 V			51 mm	2.008 "		1.339 in
KEMET SC-04-500	Through Hole	250 V	2			5 mH	4 A	-40 °C	105 ░C	4 PC Pin No Base Vertical		Power Line	250 V			29 mm	1.142 in	70 mOhm							29 mm	1.142 in
KEMET SC-02-20J	Through Hole	250 V	2			2 mH	2 A	-40 °C	120 °C	Vertical	4 Lead	Power Line	250 V	20 mm				110 mOhm	1.063 in		27 mm						25 mm	0.984 "	0.787 in
KEMET SC-15-35JH	Through Hole	250 V	2		34 mm	1 kHz 3.5 mH	15 A	-40 °C	105 ░C	Horizontal	4 Lead	Power Line	250 V			51 mm	2.008 "		1.339 in
