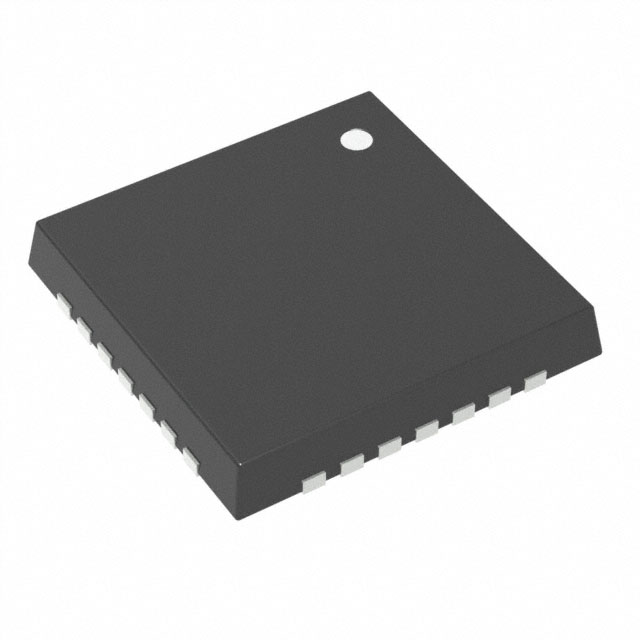

CMX901QT8

Active

CML Micro

IC AMP GPS 130MHZ-950MHZ 28WQFN

Search across all available documentation for this part.

Active

CML Micro

IC AMP GPS 130MHZ-950MHZ 28WQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMX901QT8	CMX901 Series

Current - Supply	2.2 A	2.2 A
For Use With/Related Products	-	CMX901
Frequency [Max]	950 MHz	170 - 950 MHz
Frequency [Min]	130 MHz	130 - 900 MHz
Gain	31 dB, 32 dB	31 - 32 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	28-VFQFN Exposed Pad	28-VFQFN Exposed Pad
RF Type	General Purpose	General Purpose
Supplied Contents	-	Board(s)
Supplier Device Package	28-WQFN (5x5)	28-WQFN (5x5)
Test Frequency	915 MHz	915 MHz
Type	-	Power Amplifier
Voltage - Supply [Max]	6 V	6 V
Voltage - Supply [Min]	2.5 V	2.5 V

IC AMP GPS 130MHZ-950MHZ 28WQFN

Part	RF Type	Frequency [Max]	Frequency [Min]	Test Frequency	Package / Case	Mounting Type	Gain	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Current - Supply	Type	For Use With/Related Products	Supplied Contents
CML Micro CMX901QT8	General Purpose	950 MHz	130 MHz	915 MHz	28-VFQFN Exposed Pad	Surface Mount	31 dB, 32 dB	2.5 V	6 V	28-WQFN (5x5)	2.2 A
CML Micro EV9011-160		170 MHz	150 MHz									Power Amplifier	CMX901	Board(s)
CML Micro EV9011-435		470 MHz	400 MHz									Power Amplifier	CMX901	Board(s)
CML Micro EV9011-915		930 MHz	900 MHz									Power Amplifier	CMX901	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC General Purpose 130MHz ~ 950MHz 28-WQFN (5x5)
