EV9011-915

Active

CML Micro

CMX901 EVALUATION KIT 900-930MHZ

Search across all available documentation for this part.

Active

CML Micro

CMX901 EVALUATION KIT 900-930MHZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 110.35

General part information

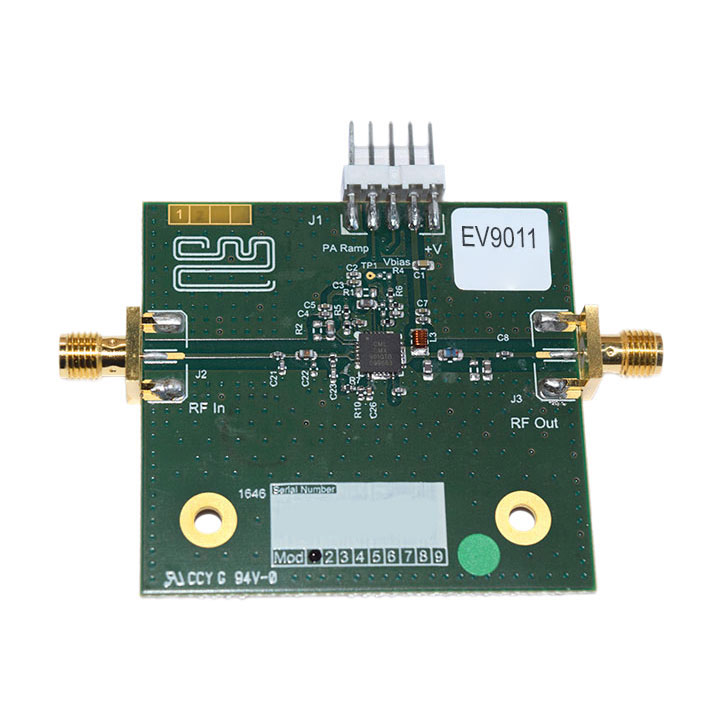

- CMX901 Power Amplifier 900MHz ~ 930MHz Evaluation Board

Technical documentation and resources

Specification	EV9011-915	CMX901 Series

Current - Supply	-	2.2 A
For Use With/Related Products	CMX901	CMX901
Frequency [Max]	930 MHz	170 - 950 MHz
Frequency [Min]	900 MHz	130 - 900 MHz
Gain	-	31 - 32 dB
Mounting Type	-	Surface Mount
Package / Case	-	28-VFQFN Exposed Pad
RF Type	-	General Purpose
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	28-WQFN (5x5)
Test Frequency	-	915 MHz
Type	Power Amplifier	Power Amplifier
Voltage - Supply	-	2.5 V
Voltage - Supply	-	6 V

Part	RF Type	Frequency [Max]	Frequency [Min]	Test Frequency	Package / Case	Mounting Type	Gain	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Current - Supply	Type	For Use With/Related Products	Supplied Contents
CML Micro CMX901QT8	General Purpose	950 MHz	130 MHz	915 MHz	28-VFQFN Exposed Pad	Surface Mount	31 dB, 32 dB	2.5 V	6 V	28-WQFN (5x5)	2.2 A
CML Micro EV9011-160		170 MHz	150 MHz									Power Amplifier	CMX901	Board(s)
CML Micro EV9011-435		470 MHz	400 MHz									Power Amplifier	CMX901	Board(s)
CML Micro EV9011-915		930 MHz	900 MHz									Power Amplifier	CMX901	Board(s)
