Technical Specifications
Parameters and characteristics for this part
| Specification | 100KEPS10BBSW |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, UL |
| Configuration | Single Stage |
| Current | 100 A |
| Filter Type | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 520 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 450.99 | |
| 10 | $ 402.18 | |||
Description
General part information
100KEPS10 Series

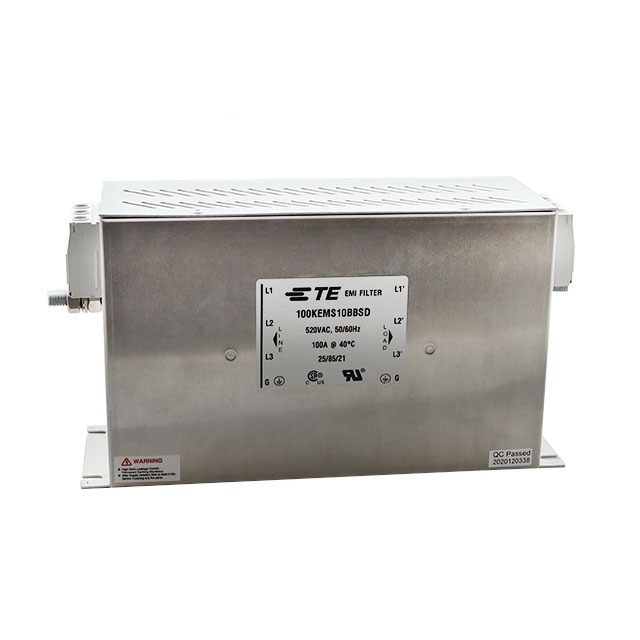

100 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, WYE (4 wire + ground), 520 VAC, Chassis Mount, Corcom KEP
