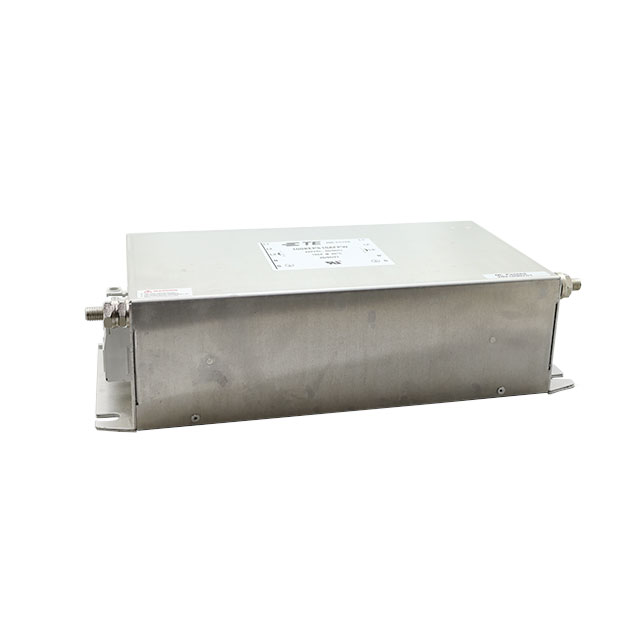

100KEPS10AFPW

Active

TE Connectivity Raychem Cable Protection

LINE FLTR 440VAC 100A CHASS MNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FLTR 440VAC 100A CHASS MNT

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Current	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated AC	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Applications	Mounting Type
TE Connectivity Raychem Cable Protection 100KEPS10AFPW	CSA UL	100 A	Terminal Block	-25 °C	85 °C	440 V	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	Converter	Chassis Mount
TE Connectivity Raychem Cable Protection 100KEPS10BBSW	CSA UL	100 A	Terminal Block	-25 °C	85 °C	520 V	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	General Purpose	Chassis Mount
TE Connectivity Raychem Cable Protection 100KEPS10ABSW	CSA UL	100 A	Terminal Block	-25 °C	85 °C	440 V	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	General Purpose	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Wye) EMC/EMI Line Filter 100 A 440V 50/60Hz Single Stage Terminal Block

Technical documentation and resources
