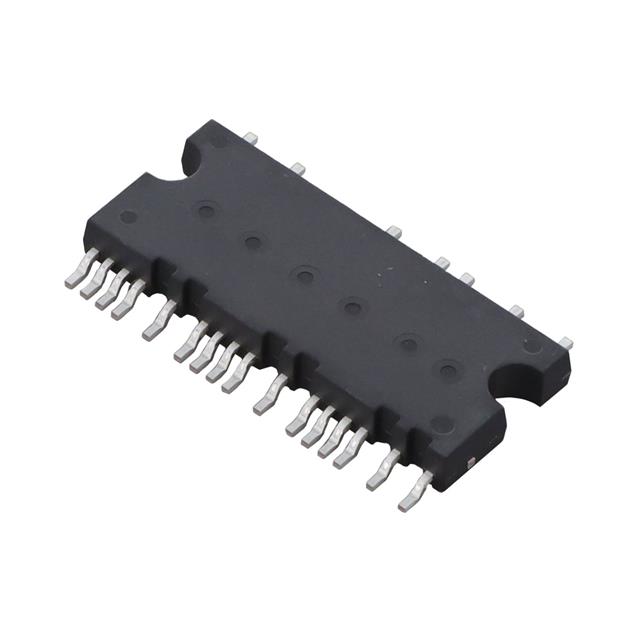

IM241S6S1JAUMA1

Active

Infineon Technologies

CIPOS™ MICRO 600 V, 2 A THREE-PHASE RCD2 IGBT BASED INTELLIGENT POWER MODULE WITH OPEN EMITTER IN SOP 29X12 PACKAGE PROVIDING FULLY-FEATURED COMPACT INVERTER SOLUTION FOR LOW MOTOR DRIVE APPLICATIONS LIKE FANS, PUMPS AND LIGHT LOAD APPLIANCES.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

IM241S6S1JAUMA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IM241S6S1JAUMA1

Configuration	Three Phase Inverter
Input	Standard
Mounting Type	Surface Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	23-PowerSMD Module, Gull Wing
Power - Max [Max]	9 W
Supplier Device Package	23-SOP
Vce(on) (Max) @ Vge, Ic	1.78 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

IM241S6 Series

Part	Supplier Device Package	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Input	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	NTC Thermistor	Vce(on) (Max) @ Vge, Ic	Mounting Type
Infineon Technologies IM241S6S1JAUMA1	23-SOP	Three Phase Inverter	150 °C	-40 °C	Standard	9 W	600 V	23-PowerSMD Module Gull Wing		1.78 V	Surface Mount
Infineon Technologies IM241S6T2BAKMA1	23-DIP	Three Phase Inverter	150 °C	-40 °C	Standard	9 W	600 V			1.78 V	Through Hole
