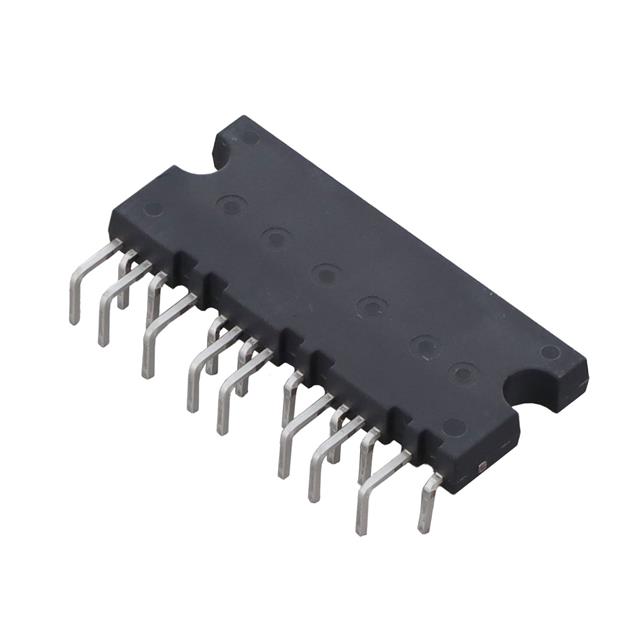

IM241S6T2BAKMA1
ActiveCIPOS™ MICRO 600 V, 2 A THREE-PHASE RCD2 IGBT BASED INTELLIGENT POWER MODULE WITH OPEN EMITTER IN DIP 29X12 PACKAGE PROVIDING FULLY-FEATURED COMPACT INVERTER SOLUTION FOR LOW MOTOR DRIVE APPLICATIONS LIKE FANS, PUMPS AND LIGHT LOAD APPLIANCES.
Deep-Dive with AI
Search across all available documentation for this part.
IM241S6T2BAKMA1
ActiveCIPOS™ MICRO 600 V, 2 A THREE-PHASE RCD2 IGBT BASED INTELLIGENT POWER MODULE WITH OPEN EMITTER IN DIP 29X12 PACKAGE PROVIDING FULLY-FEATURED COMPACT INVERTER SOLUTION FOR LOW MOTOR DRIVE APPLICATIONS LIKE FANS, PUMPS AND LIGHT LOAD APPLIANCES.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IM241S6T2BAKMA1 |
|---|---|
| Configuration | Three Phase Inverter |
| Input | Standard |
| Mounting Type | Through Hole |
| NTC Thermistor | True |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Max [Max] | 9 W |
| Supplier Device Package | 23-DIP |
| Vce(on) (Max) @ Vge, Ic | 1.78 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IM241S6 Series
CIPOS™ Micro600 V, 2 A three-phase RCD2 IGBT based intelligent power module with open emitter in DIP 29x12 package providing fully-featured compact inverter solution for low motor drive applications like fans, pumps and light load appliances.
