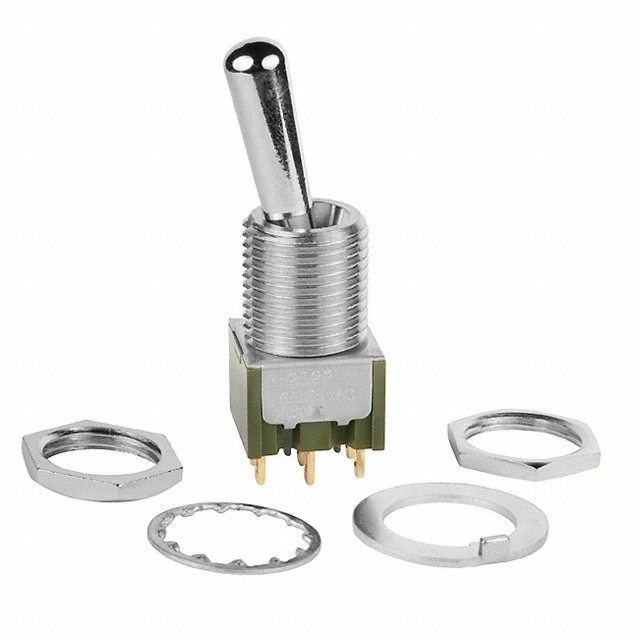

BUSHING MOUNT MINIATURE TOGGLE SWITCH; POLES: DPDT; CIRCUITS: ON-ON; CURRENT RATING: 6A (AC), 4A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 17.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT; TERMINATION STYLE: SOLDER LUG; PANEL CUTOUT DIMENSIONS: CIRCULAR - 12.50MM DIA; BUSHING THREAD: M12 X 1; FEATURES: EPOXY SEALED TERMINALS; RATING: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022B2B1A01

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022B2B1A01

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2022B2 Series

Part	Actuator Material	Circuit	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Termination Style	Actuator Type	Switch Function	Voltage Rating - DC	Illumination	Actuator Length [x]	Current Rating (Amps)	Bushing Thread	Bushing Thread	Voltage Rating - AC	Features	Ingress Protection
NKK Switches M2022B2B1W03-VC	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round with Cap	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Red Cap
NKK Switches M2022B2B1A03-AT401A	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	PC Pin	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V
NKK Switches M2022B2B1A01-AT401S	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	Solder Lug	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V
NKK Switches M2022B2B3G01	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	Solder Lug	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1W03-VC-AT401A	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round with Cap	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V
NKK Switches M2022B2B3G02	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	Quick Connect - 0.062" (1.5mm)	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1W03	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals
NKK Switches M2022B2B3W01	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	Solder Lug	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1A01	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	Solder Lug	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals
NKK Switches M2022B2B1A03	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals
