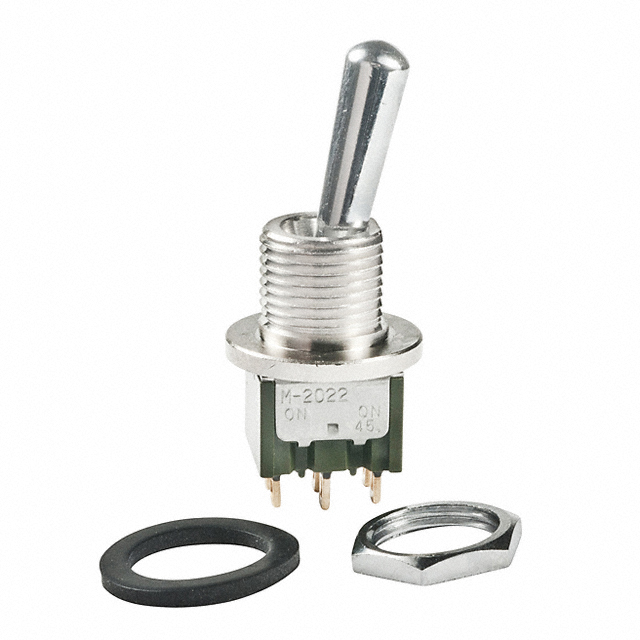

M2022B2B3G01

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022B2B3G01

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022B2B3G01

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2022B2 Series

Part	Actuator Material	Circuit	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Termination Style	Actuator Type	Switch Function	Voltage Rating - DC	Illumination	Actuator Length [x]	Current Rating (Amps)	Bushing Thread	Bushing Thread	Voltage Rating - AC	Features	Ingress Protection
NKK Switches M2022B2B1W03-VC	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round with Cap	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Red Cap
NKK Switches M2022B2B1A03-AT401A	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	PC Pin	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V
NKK Switches M2022B2B1A01-AT401S	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	Solder Lug	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V
NKK Switches M2022B2B3G01	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	Solder Lug	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1W03-VC-AT401A	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round with Cap	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V
NKK Switches M2022B2B3G02	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	50000 Cycles	Quick Connect - 0.062" (1.5mm)	Standard Round	On-On	28 V	Non-Illuminated	17.5 mm	0.4 VA	M12	1 x 1	28 V	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1W03	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals
NKK Switches M2022B2B3W01	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	Solder Lug	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1A01	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	Solder Lug	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals
NKK Switches M2022B2B1A03	Brass Chrome Plated	DPDT	12.5 mm	-30 ░C	85 °C	25000 Steps	PC Pin	Standard Round	On-On	30 V	Non-Illuminated	17.5 mm	4 A 6 A	M12	1 x 1	125 V	Epoxy Sealed Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M2022B2 Series

Toggle Switch DPDT Panel Mount
