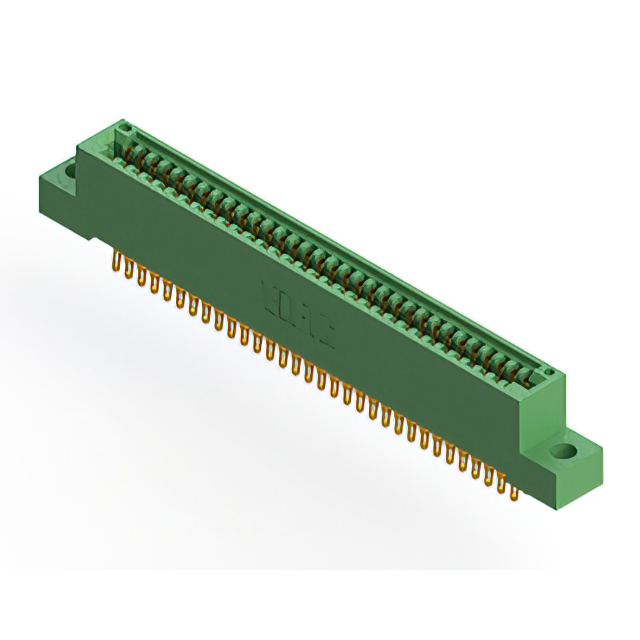

CONN EDGE DUAL FMALE 64POS 0.100

Connectors, Interconnects

845-064-555-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.100

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-064-555-204

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Straddle Mount, Board Edge
Number of Positions	64, 32
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

845-064 Series

...

Part	Contact Type	Material - Insulation	Read Out	Card Thickness (Min)	Card Thickness (Max)	Flange Feature	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Termination Rows	Contact Finish	Number of Rows	Contact Finish Thickness	Mounting Type	Contact Material	Number of Positions	Termination	Gender	Color	Card Type	Flange Feature Diameter	Features
EDAC Inc. 845-064-544-107	Cantilever	DAP Diallyl Phthalate	Single	0.054 in	0.07 in	Flush Mount M3 Threaded Insert Top Opening	0.1 in	125 °C	-40 °C	1 rows	Gold	1	10 Ąin	Through Hole	Copper Alloy	64	Wire Wrap	Female	Green	Non Specified Single Edge
EDAC Inc. 845-064-520-508	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	4-40 Threaded Insert Top Mount Opening	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Through Hole	Copper Alloy	32 64	Solder	Female	Green	Dual Edge Non Specified
EDAC Inc. 845-064-541-208	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Through Hole	Copper Alloy	32 64	Wire Wrap	Female	Green	Dual Edge Non Specified
EDAC Inc. 845-064-520-112	Cantilever	DAP Diallyl Phthalate	Single	0.054 in	0.07 in	Flush Mount Side Opening Unthreaded	0.1 in	125 °C	-40 °C	1 rows	Gold	1	10 Ąin	Through Hole	Copper Alloy	64	Solder	Female	Green	Non Specified Single Edge	0.128 in
EDAC Inc. 845-064-544-803	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	Floating Bobbin Top Mount Opening	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Through Hole	Copper Alloy	32 64	Wire Wrap	Female	Green	Dual Edge Non Specified	0.116 in
EDAC Inc. 845-064-525-507	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	M3 Threaded Insert Top Mount Opening	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Through Hole	Copper Alloy	32 64	Solder	Female	Green	Dual Edge Non Specified
EDAC Inc. 845-064-542-508	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	4-40 Threaded Insert Top Mount Opening	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Through Hole	Copper Alloy	32 64	Wire Wrap	Female	Green	Dual Edge Non Specified
EDAC Inc. 845-064-521-808	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	4-40 Threaded Insert Top Mount Opening	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Through Hole	Copper Alloy	32 64	Solder	Female	Green	Dual Edge Non Specified
EDAC Inc. 845-064-521-102	Cantilever	DAP Diallyl Phthalate	Single	0.054 in	0.07 in	Flush Mount Top Opening Unthreaded	0.1 in	125 °C	-40 °C	1 rows	Gold	1	10 Ąin	Through Hole	Copper Alloy	64	Solder	Female	Green	Non Specified Single Edge	0.128 in
EDAC Inc. 845-064-555-204	Cantilever	DAP Diallyl Phthalate	Dual	0.054 in	0.07 in	Flush Mount Top Opening Unthreaded	0.1 in	125 °C	-40 °C	2 rows	Gold	2	10 Ąin	Board Edge Straddle Mount	Copper Alloy	32 64	Solder	Female	Green	Dual Edge Non Specified	0.156 in	Card Extender
