845-064-541-208
ActiveEDAC Inc.

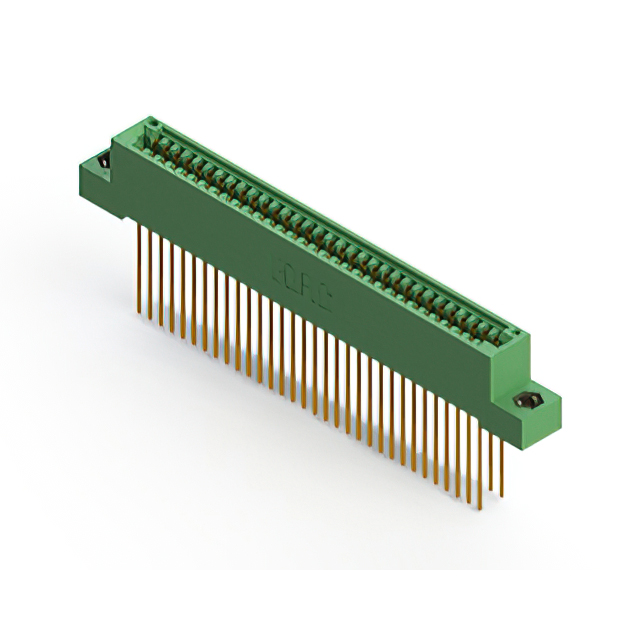

CONN EDGE DUAL FMALE 64POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-064-541-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 64POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-064-541-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
845-064 Series
...
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Termination | Number of Positions | Card Type | Gender | Number of Rows | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Type | Flange Feature | Contact Material | Contact Finish | Mounting Type | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 64 | Non Specified - Single Edge | Female | 1 | 64 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Gold | Through Hole | Single | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 64 | Non Specified - Dual Edge | Female | 2 | 32 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | Through Hole | Dual | |||
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Single Edge | Female | 1 | 64 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | Flush Mount Side Opening Unthreaded | Copper Alloy | Gold | Through Hole | Single | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Wire Wrap | 64 | Non Specified - Dual Edge | Female | 2 | 32 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Through Hole | Dual | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Dual Edge | Female | 2 | 32 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Through Hole | Dual | |||
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Single Edge | Female | 1 | 64 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | Through Hole | Single | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Dual Edge | Female | 2 | 32 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | Board Edge Straddle Mount | Dual | 3.96 mm | 0.156 in | Card Extender |
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Single Edge | Female | 1 | 64 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | Through Hole | Single | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Dual Edge | Female | 2 | 32 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Through Hole Right Angle | Dual | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Solder | 64 | Non Specified - Dual Edge | Female | 2 | 32 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Cantilever | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Through Hole | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-064 Series
64 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
