SDF-S25-103L012

Active

NorComp Inc.

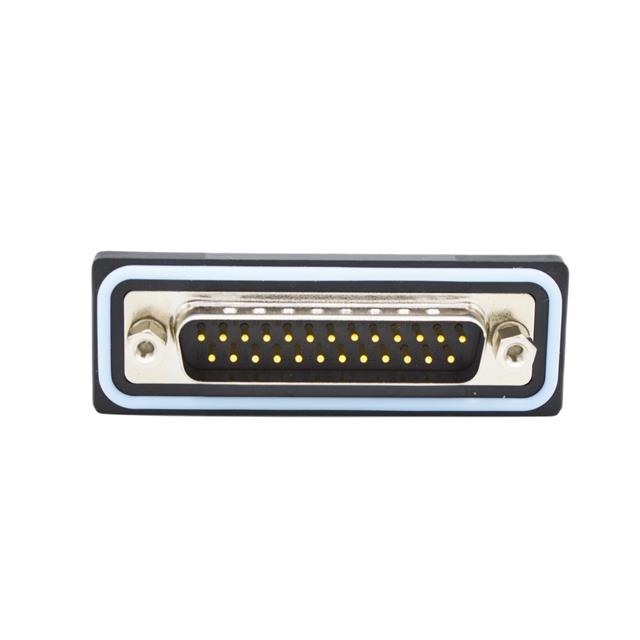

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Search across all available documentation for this part.

Active

NorComp Inc.

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

Specification	SDF-S25-103L012	SDF-S25 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	Grounding Indents	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B	DB, B
Shell Size, Connector Layout [custom]	3	3

Part	Flange Feature	Number of Rows	Contact Material	Ingress Protection	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish	Dielectric Material	Connector Style	Shell Material, Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Finish Thickness	Features
NorComp Inc. SDF-S25-203L012	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Receptacle, Female Sockets	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal	0.76 Ám	30 Áin	UL94 V-0
NorComp Inc. SDF-S25-203L011	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Receptacle, Female Sockets	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal			UL94 V-0	Flash
NorComp Inc. SDF-S25-103L012	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Male Pins, Plug	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal	0.76 Ám	30 Áin	UL94 V-0		Grounding Indents
NorComp Inc. SDF-S25-103L011	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Male Pins, Plug	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal			UL94 V-0	Flash	Grounding Indents
